Chapter 7 Retrieving Information
268

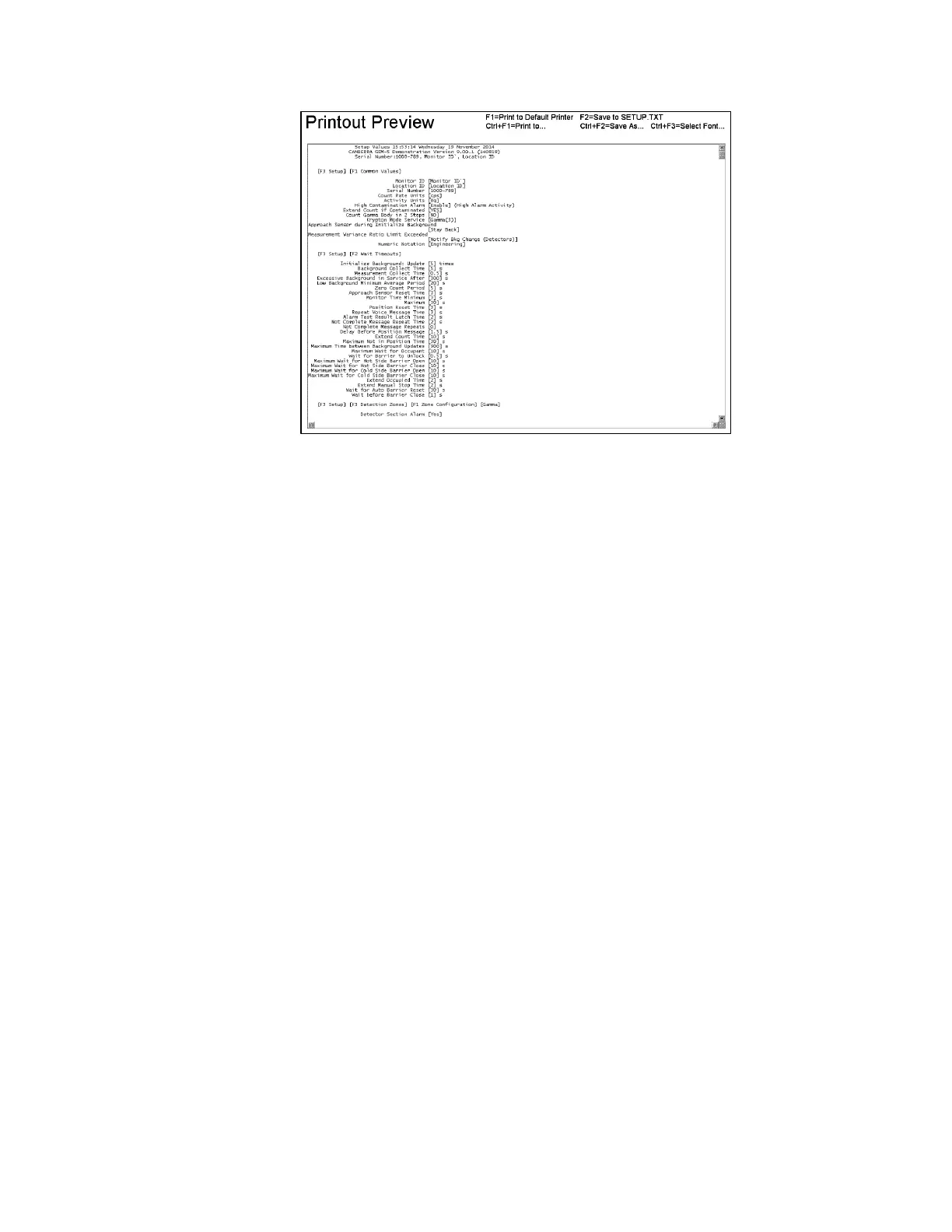

Figure 126 The All Setup Values Printout Preview screen
F8 – Calibration Check Results Printout
The Calibration Check Results Printout is produced in two ways:
1. It is either produced by pressing F8 – Calibration Check Results from the
F6 – Printout Menu.
2. Or automatically to D:\MonitorProgram\DATALOG\CALCHECK.TXT when
leaving the F3 – Calibration screen providing that a Calibration Check
collection was done on at least one detector while in this screen and it is enabled
in “Auto Save Calibration Check Results” Printout (as set up in the F8 –
Printout screen (on page 148). This is one of the files that can be transferred
automatically to the central history computer or the mapped network drive if the
F9 – Data Transfer (Network) Setup is configured as appropriate (i.e., set to
“MOVE” or “COPY”). If this transfer is successful then all these files are
deleted from the D:\MonitorProgram\DATALOG directory.
In general, the F8 – Print Out screen settings (on page 148) determine which check
results files are saved and for how many days they are retained while the F9 – Data
Transfer (Network) Setup screen settings (on page 155) determine which are
transferred.
The Printout consists of Title, Column Labels, and Data in form of 1 zone per row.
The title would be, “Zone Gamma Calibration Check Results”.
• The details of the Column Labels are:
• 1
st
column Zone
• 2
nd
column Description
• 3
rd
column High Bkg rate
