Chapter 7 Retrieving Information
258
F4 – Calibration Data Printout
The Calibration Data Printout (Figure 123) complements the Calibration Printout
described above. It provides:
• High Voltage (HV)
14
• Discriminator Voltage (DV)
14
• Detector live time,
• Gross count rate,
• Background count rate and background averaging time,
• Calibration self shield factor,
• Net count rate,
• Source strength,
• Zone efficiency.
This data is obtained from the Z_CALIB.DF settings file (on page 297).

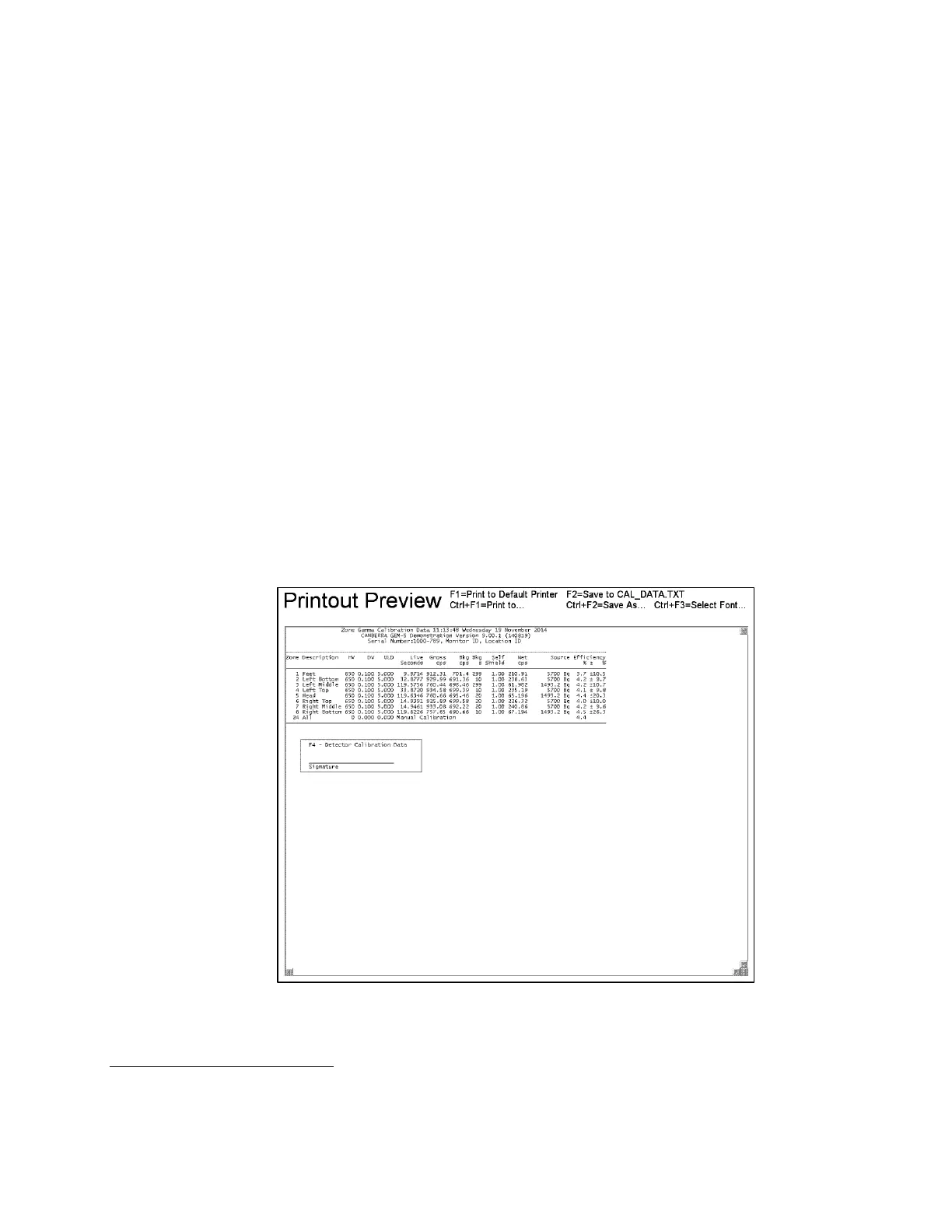

Figure 123 The Calibration Data Printout Preview Screen
14
In addition to detector efficiencies being <1%, changing a zone’s HV, ULD or Decriminator Voltage without recalibrating
will cause a calibration fault (“Not Calibrated” in F4 – Out of Service Causes screen on page 141 and Failure to Return to
Service on page 236).
