Chapter 4 Unit Setup
72
4. Unit Setup
Most of the parameters to be set up in the software are discussed in the chapters
Parameters Definition on page 93, Diagnostics/Maintenance on page 194 or
Retrieving Information on page 236. However, the menu items needed to initially set
up the monitor are discussed in this chapter. To start (and depending on which menu
is currently showing), press Esc several times (to get back to the main Service Menu
as shown in Figure 38).

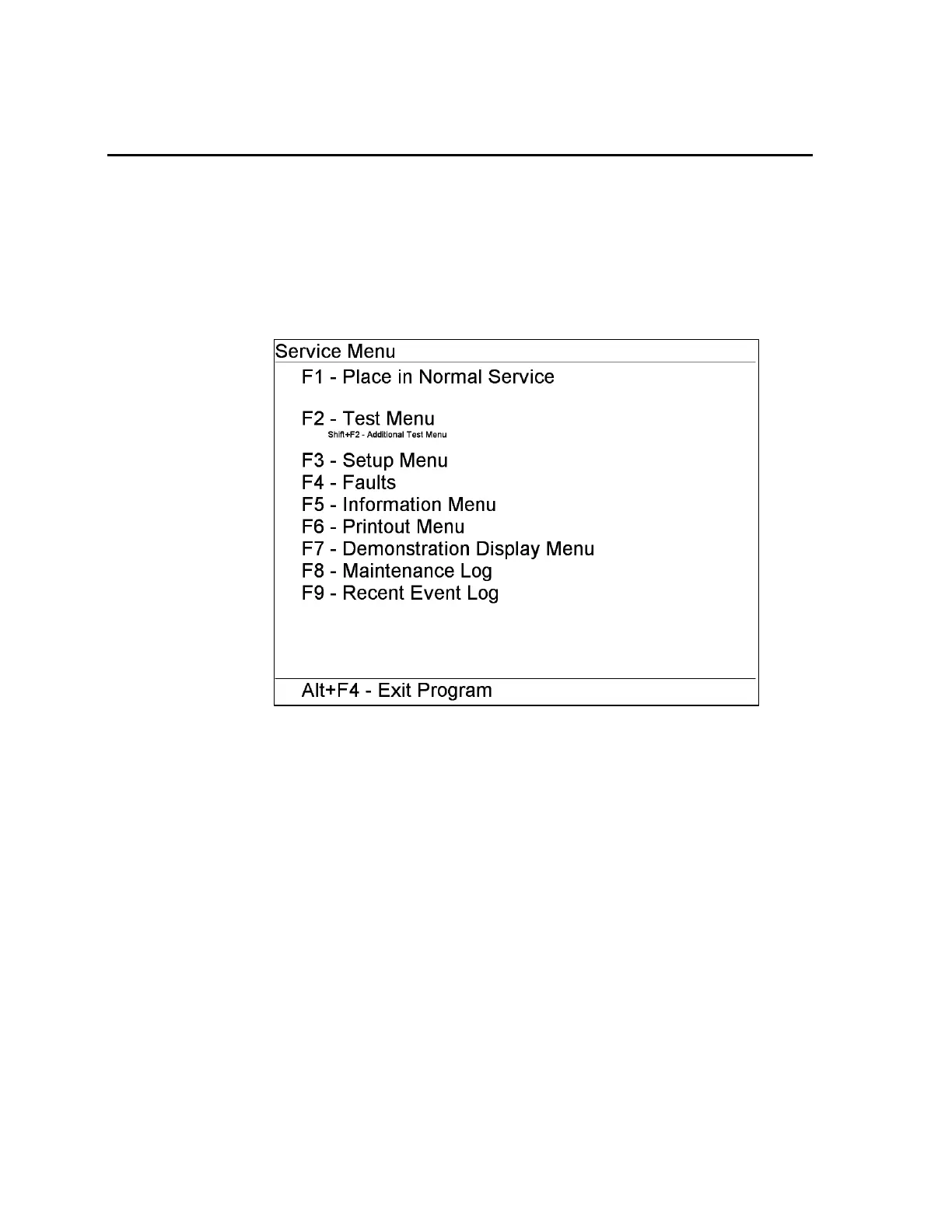

Figure 38 Service Menu
The following menu items will be initially required (starting from the Service Menu)
and discussed here:
1. F2 – Test Menu, F9 – Plateau Plot (on page 74)
2. F2 – Test Menu, F8 – Discriminator Plot (on page 78).
3. Shift+F2 – Additional Test Menu, F1 – Optimize Gamma HV (on page 78).
