Chapter 5 Parameters Definition
182

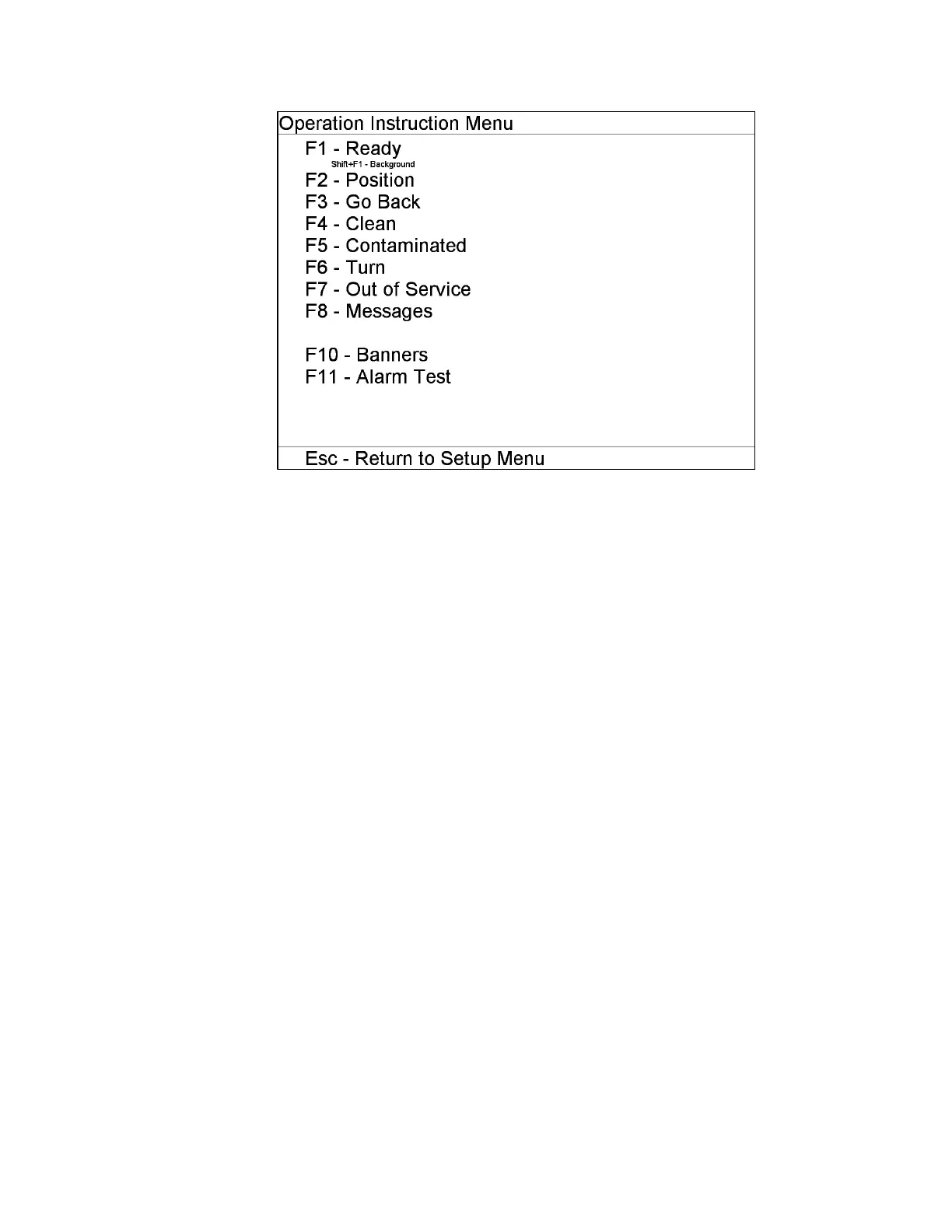

Figure 78 The Operation Instruction Menu Screen
Press the appropriate function key to access the individual Instruction screens.
The text for each Operation screen (e.g. CLEAN) is stored in the corresponding
INST*.DF file (e.g. INSTCLEA.DF) located in the D:\MonitorProgram\SETTINGS
directory. If the INST*.DF files are not installed then the program displays
Operation screens using the English text from the S_EN.dll (see the Setup Language
item in the Model Selection screen on page 18).
These screens are used in conjunction with the Voice & Screen Choice and Operation
Screen settings in F6
−
Operation Voice & Screen on page 151. When Operation
Screen is set to “Multiple Language” then an additional line item on each Instructions
screen indicates a “Display with Voice” number. This value can be changed from 1
to 8 using the PgDn and PgUp keys. This allows different instructions to be used
with each Voice Choice, for example to provide instructions in the language
corresponding to the current Voice Choice.
The F6=Set Factory Default and Ctrl+F6=All Factory Defaults keys only affect
the settings for the Display with Voice number currently selected. The default text
loaded by these keys reflects the Default Language shown, as set on Operation Voice
& Screen. The Ctrl+F7=Recall Previous Settings key affects the settings for all
Display with Voice numbers for the current Instructions screen.
See below for individual screens.
Note: Obvious Line Items and corresponding values are not described.
