R5905948 /12 Event Master Devices 127
How to access to the Input configuration adjustments
Adjustments to inputs are performed in the “Adjust” panel:
1. Select the input from the configuration list
or
clicking on the connector graphic.
An input is selected.
2. Click on the Adjust tab that is on the top of the Adjustment area.

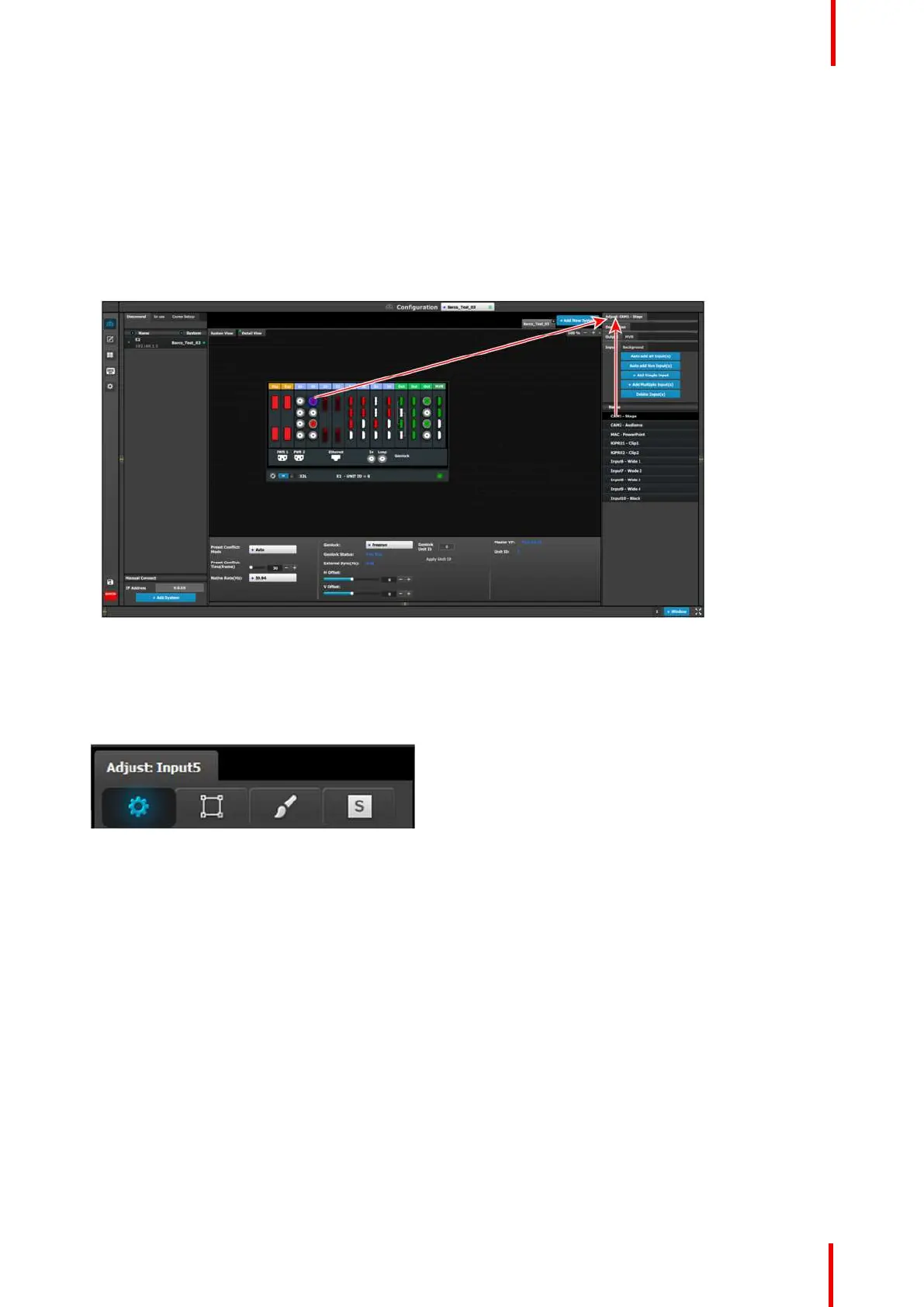

Image 6-18: Accessing the Input Adjust panel
The input adjustment panel is displayed.
Input adjustment panel description
The input adjustment panel is divided in four sections.
• Main page
• Format & Timing
• Color Adjustment
• Contact Information
EM GUI orientation
