R5905948 /12 Event Master Devices164

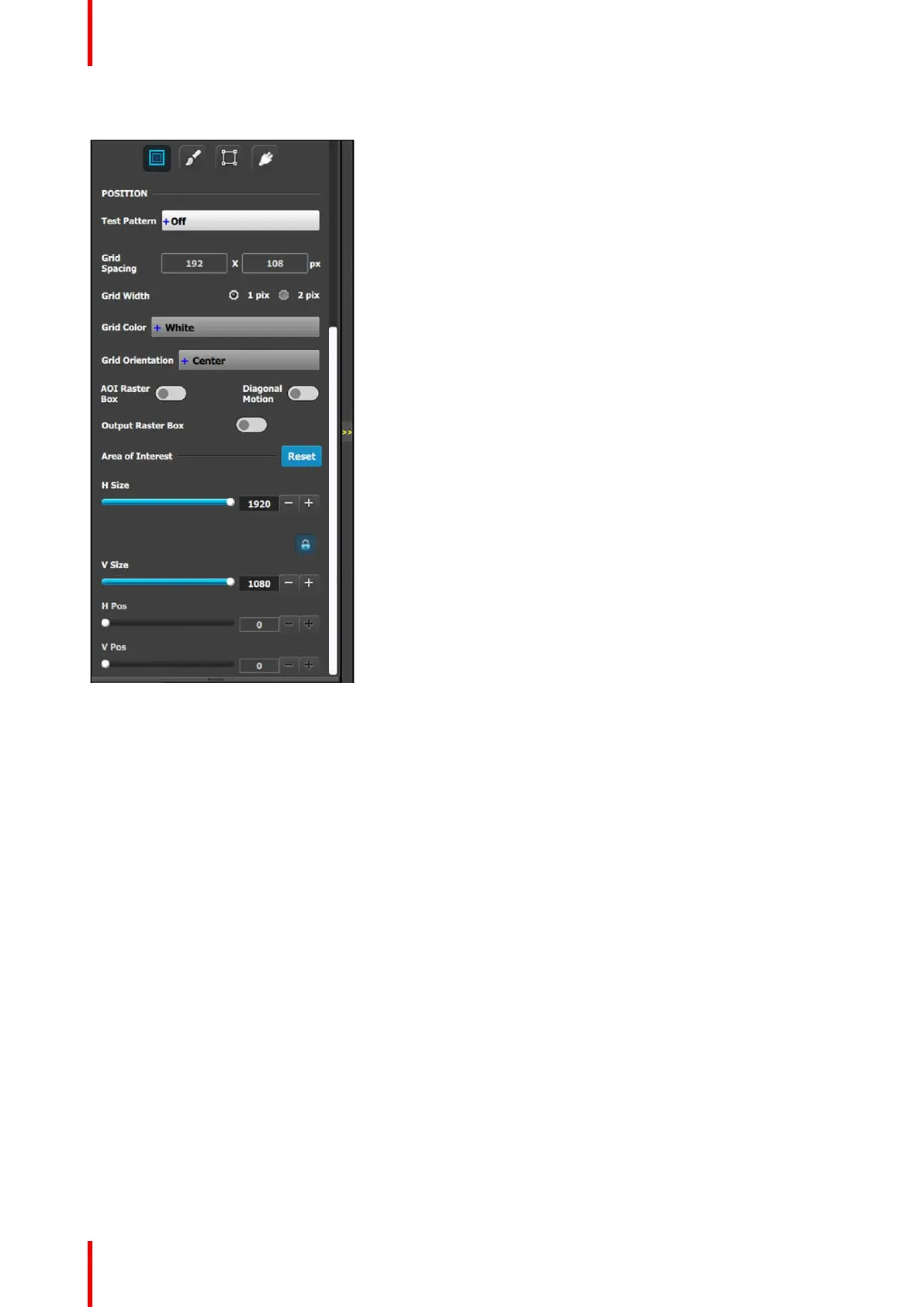

Output menu – Main submenu
Operate similarly to the Output adjustment panel >
Main menu.
• Test pattern: Turns the Test Patterns ON and
select the desired type. The default setting is OFF.
Test pattern types:
– Horizontal Ramp – White
– Vertical Ramp – Black
– 100% Color Bars – SMPTE Bars
– 16x16 Grid – H Alignment
– 32x32 Grid – V Alignment
– Burst – H V Alignment
- –75% Color Bars – Circle Alignment
– 50% Gray – Red
– Horizontal steps – Green
– Vertical steps – Blue
• Raster box: Turns ON or OFF on a raster around
the default active area. This raster box is a white,
single-pixel-wide broken line.
• Diagonal Motion: Turns the Diagonal Motion ON
or OFF for select patterns:
- The motion is a bottom-right to top-left diagonal
for 16x16, 32x32 grid.
- The motion is right to left for 100% Color Bars.
- There is no motion in Horizontal and vertical
Ramps and other patterns.
• Area of Interest (AOI): A raster box that can be
positioned and sized within the output’s active
area, it effectively makes the AOI the new active
area.
This raster box is a green, single-pixel-wide
broken line that helps you adjust the AOI within the
output’s active area The handles for the AOI menu
are:
- H Size and V size: Adjusts the horizontal and
vertical positions respectively.
- H Pos and V pos: Adjusts the horizontal and
vertical positions respectively.
- Note a lock button allows user to lock the
aspect ratio of the size.
• Reset button: resets the AOI to default which is
the full output area.
Operate similar as the Output adjustment panel > Main page. See above.
EM GUI orientation
