R5905948 /12 Event Master Devices 169

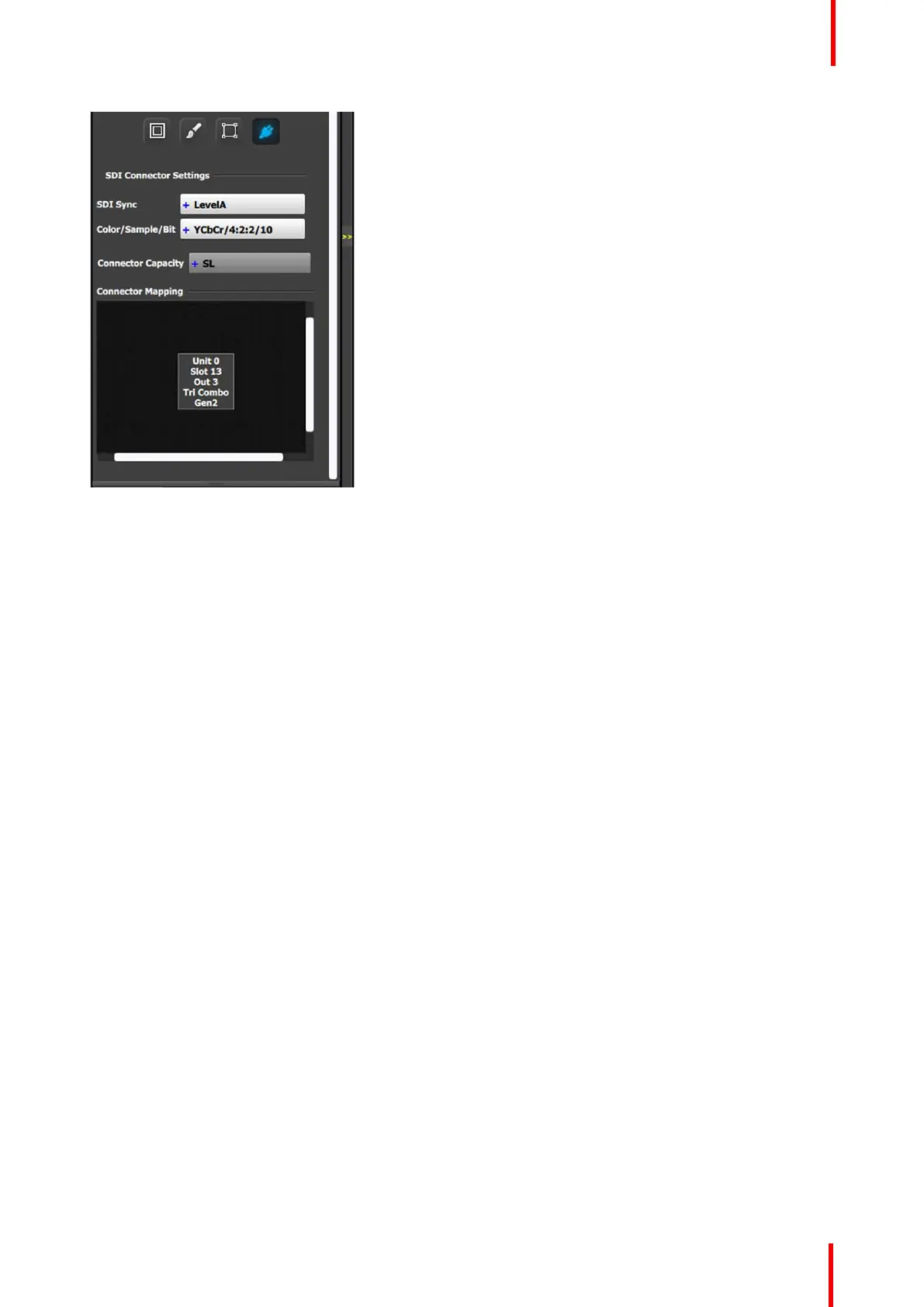

SDI Connector submenu
SDI Connector submenu
• SDI Sync (available with SDI connector type):
allows a choice between HD (1.5Gb), 3G (3Gb),
Level A, Level B, Level A 2SI, or Level B 2SI.
The SDI Type options vary, depending on the
format of the Outputs. For example, for:
- NTSC/PAL—the SDI Type can be only SD.
- 1080i or 1080p, with a refresh rate less than or
equal to 30 Hz—the SDI Type can be only HD.
- 1080p, with a refresh rate greater than 30 Hz—
the SDI Type can be:
◦ Level A (default)
◦ Level B
◦ Level A 2SI
◦ Level B 2SI
The 2SI options are available only if the Input/
Output configuration has 4 SDI connectors
from the same card, and the Output format is
either 1920 x 1080 or 2048 x 1080.
• Color/Sample/Bit: Adjusts the color space
(YCbCr), sampling rate (4:2:2) and bit depth (10)
of the output signal.
• Connector Capacity: If the connector is not
assigned to a destination as above the capacity
can be changed. Once included in a Destination
configuration this needs to be managed thru the
Adjust pane of the Destination.
• Connector Mapping: Shows the Unit ID, Slot
number, and type of output card.
Wide (screen) menu
In this menu, the user can adjust the data-doubling and feathering parameters necessary to setup a wide
blended screen. These actions can be performed simultaneously on all screens by clicking the “Select All”
button. The data-doubling parameters can be adjusted in either Basic Mode or Expert Mode.
EM GUI orientation
