R5905948 /12 Event Master Devices170

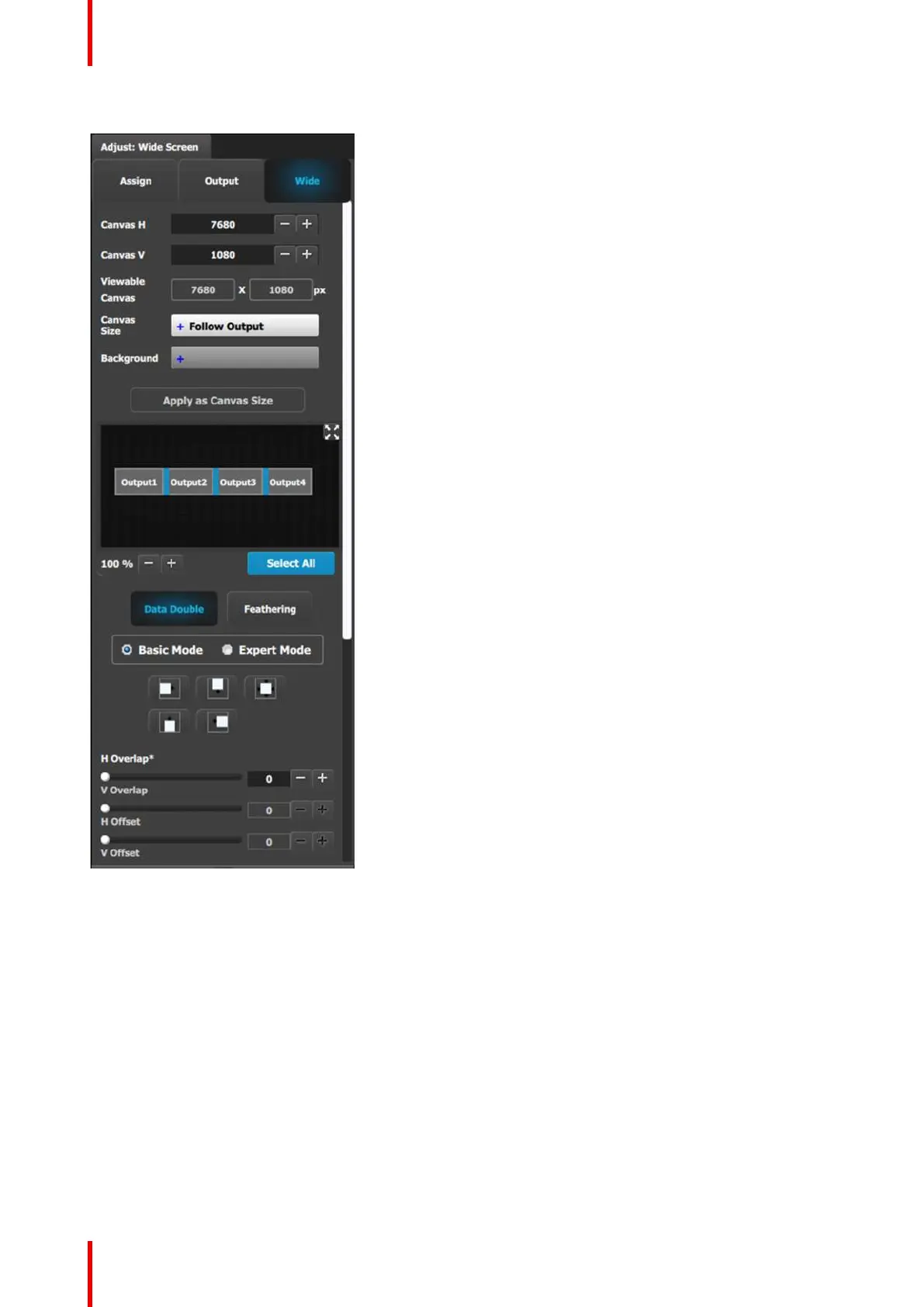

Data-doubling submenu—Basic Mode
• Canvas H: This is the horizontal size of the
canvas, measured in pixels. The edit box allows
the user to adjust this size.
• Canvas V: This is the vertical size of the canvas,
measured in pixels. The edit box allows the user to
adjust this size.
• Viewable Canvas: Viewable Canvas displays the
horizontal and vertical size of the viewable canvas
in pixels. This is the area that the Outputs cover in
the canvas.
• Canvas Size: The options are “Follow Output” and
“Use Background.”
- “Follow Output” matches the canvas size to H/
V Dimension edit boxes in the Assign tab and
the Output Config format.
- “Use Background,” matches the canvas size to
that of a selected Background.
• Background: If the Canvas Size is set to “Use
Background,” this drop-down box lets the user
select from the available backgrounds.
• Apply as Canvas Size: When switching between
“Follow Output” and “Use Background,” the user
must click on this button to choose the new canvas
size.
• Data Doubling H or V Overlap width: The
adjustment can be made by moving the slider,
entering the value manually in the box, or clicking
on the plus and minus.
Note: The Overlap sliders are disabled, until at
least one overlapping area is selected. Gray
overlaps are unselected; blue overlaps are
selected. Individual overlaps can be selected by
clicking on the desired overlap in the output image.
All overlaps can be selected by clicking on the
Select All button.
• Once an overlap is created, H and V offset can be
adjusted for Left, Right, Top, Bottom, or Center
justification over the Background.
• The icons above the sliders are shortcuts for the
offset.
