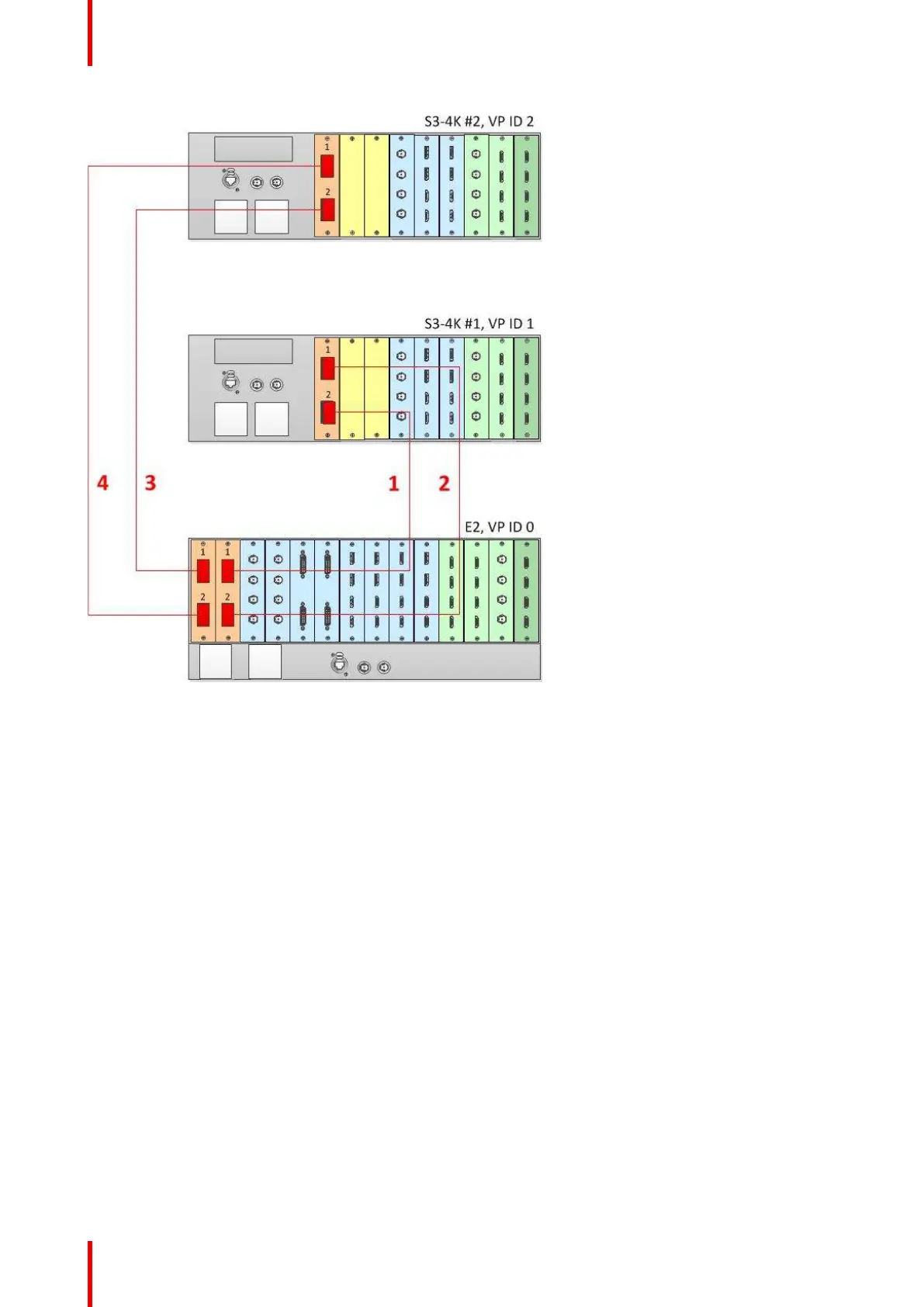

Image 6-53: Cabling between an E2 unit and two S3–4K units
Event Master Configuration for Linking an E2 Unit and Two S3-4Ks
1. Start the Event Master Toolset version 4.2 or higher.
2. Make sure that the E2 and the S3–4K units are discovered on the network and that they have different Unit
IDs.
3. Drop the E2 in the GUI.
The S3–4K units will appear grayed-out below the E2.
You will be presented the option to add each of the S3–4Ks as a slave. An S3–4K can be added to an E2 only
as a slave.
4. Select either S3–4K and click add as a slave.
5. Select either add as a master or add as a slave.
When the first S3–4K is done synchronizing with the system, the second S3–4K can then be added to the
system.
6. Select add as a slave.
7. (Optional) At this point it is suggested that you select and name appropriately each unit so that you can
identify it in your setup.
How to Link an E2 Unit, an S3-4K Unit, and four EX Units
Each E2 comes equipped with two Link cards, always located in slots 1 and 2. Each S3–4K has a single Link
card in slot 1. Link cards are identified by a yellow stripe at the top. Each EX has two Link sockets. Make sure
to use the locking mechanism and then push each cable until it locks in place.
