The Control List

256 Manpack Transceiver 2110 series Reference Manual

Renaming your transceiver

The transceiver is shipped with a standard name, that is, 2110 SSB Transceiver. If you

want to rename the transceiver, use the Rename device setting under the Devices entry in

the Control List.

To rename your transceiver:

1 Press until Main Menu is displayed.

1 Scroll to Control, then press .

1 Scroll to Devices, then press .

1 Scroll to Rename device, then hold .

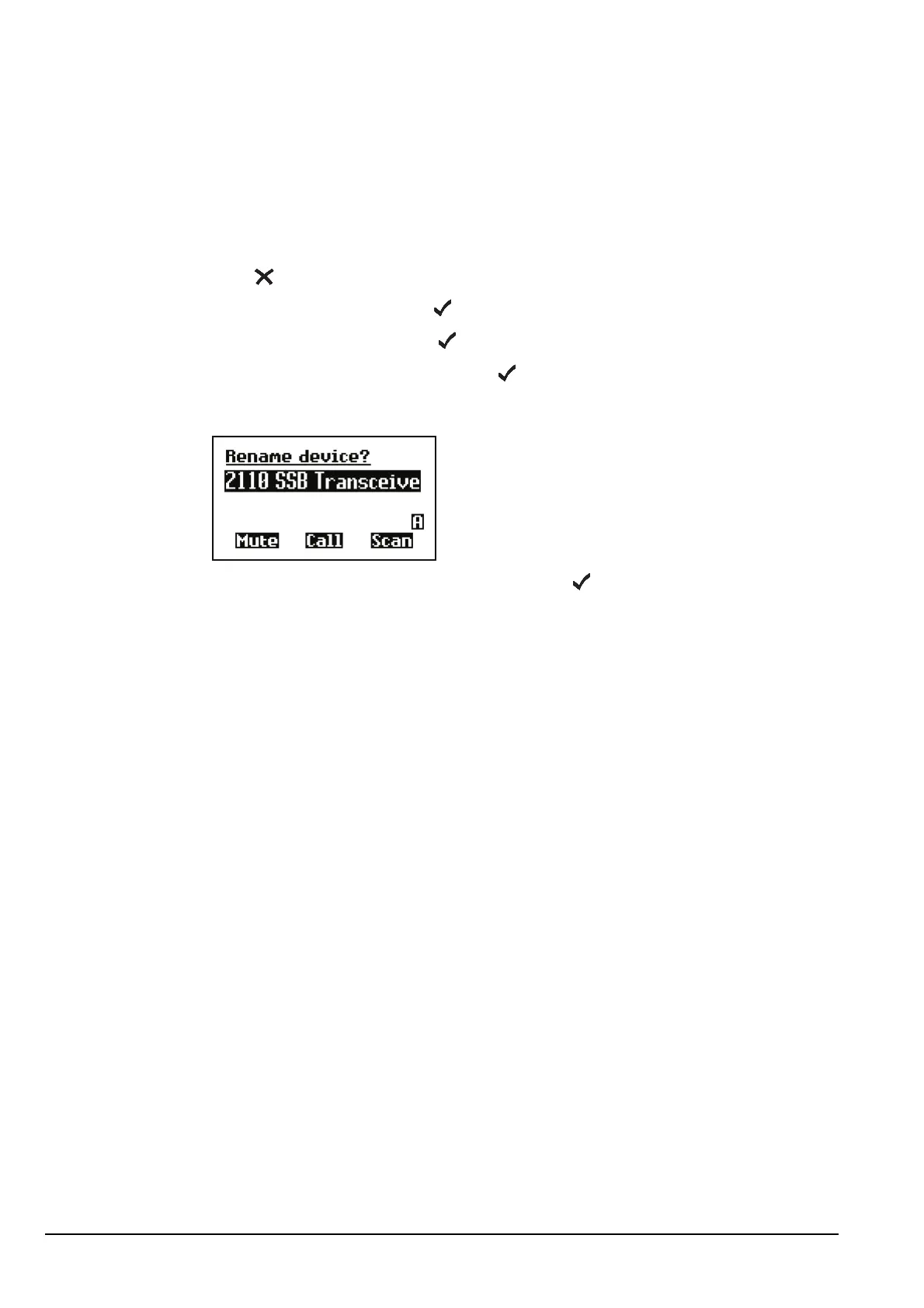

The name of the transceiver is displayed.

1 Enter a new name for the transceiver, then press .

NOTE For help with entering text see page 72, Entering and editing text.
