AES-256 digital data encryptor option

Manpack Transceiver 2110 series Reference Manual 323

Switching between secure indexes

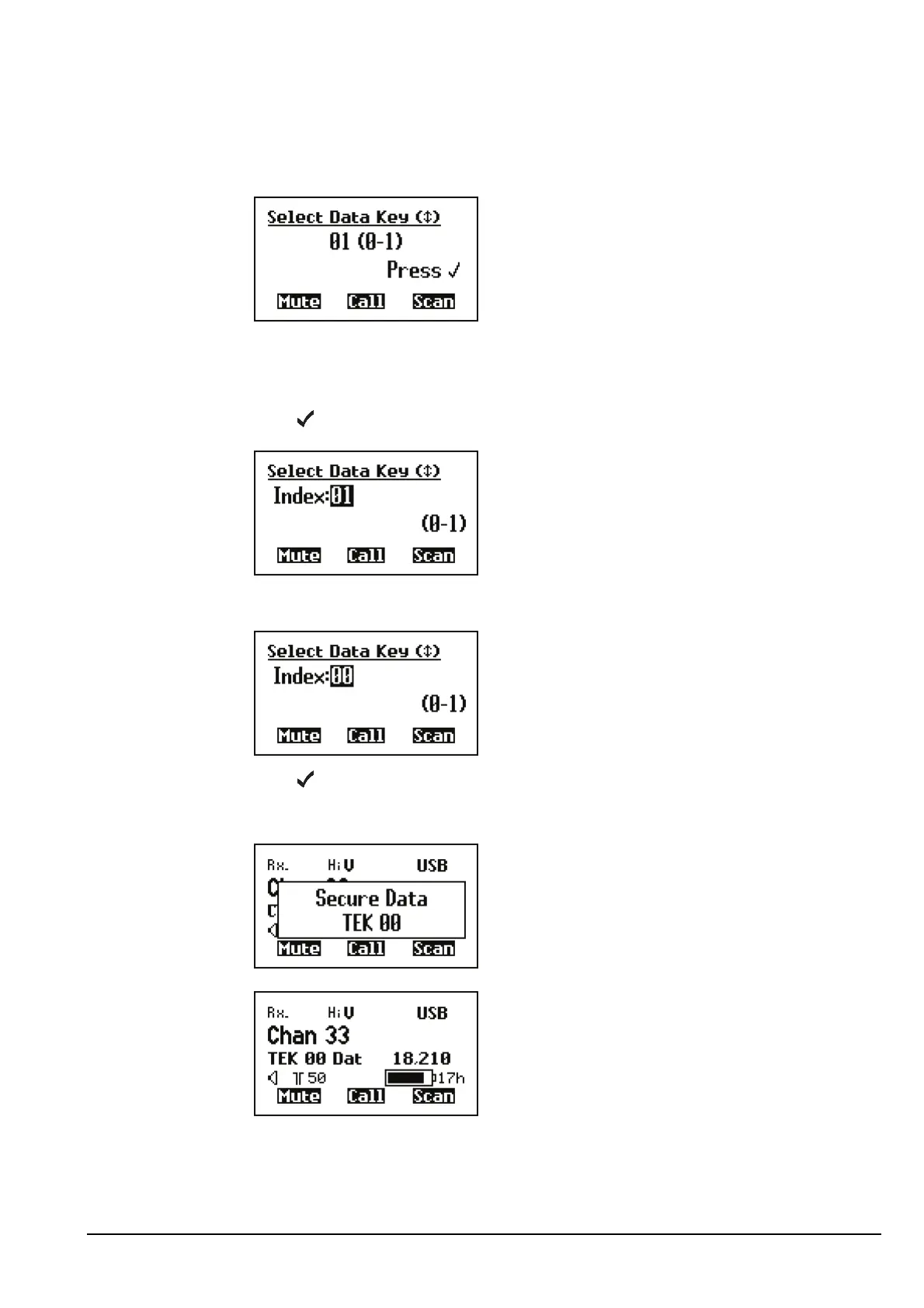

To switch between secure indexes while using the encryptor:

1 Hold SEC, then scroll to Select Data Key.

1 Press .

1 Enter, or scroll to, the number of the secure index that you want to use.

1 Press .

The transceiver goes secure using the key in the secure index that you selected.

NOTE

The currently selected secure index is shown, followed in brackets by

the range of secure indexes that are programmed with a secure key.
