Using the transceiver in free tune and Amateur Mode

334 Manpack Transceiver 2110 series Reference Manual

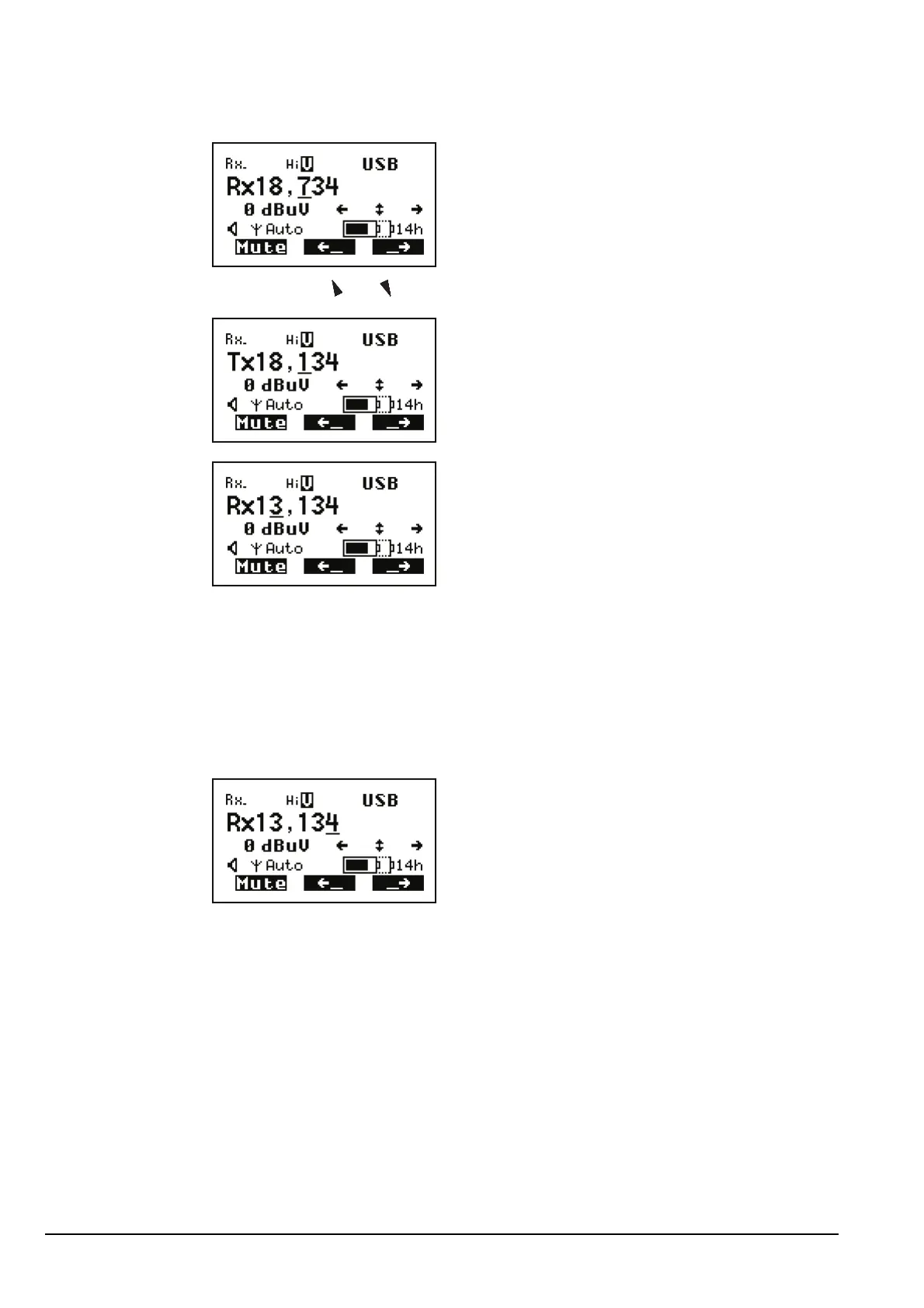

1 To increase or decrease the frequency by units of one, ten, one hundred and so on,

move the cursor to the appropriate position...

...then press the and keys. The transceiver tunes to the new frequency.

1 Do one of the following:

• To exit to the screen from which you began, press FREE Rx.

• To exit free-tune receive, go to the Channel List and select another channel (for

help see page 71, Selecting a channel).

If you re-enter Free Tune prior to selecting another channel in the Channel List, the

selected frequency is the same as that last used.
