Covidien WarmTouch - 8.3 Pole Clamp Replacement

To Next Page

To Previous Page

External Component Replacement

8-2 Service Manual

8.3 Pole Clamp Replacement

This procedure describes replacing pole clamps only, not the mounting bolts

for the clamps. If you are replacing the mounting bolts, refer to Pole Clamp and

Mounting Bolt Replacement on page 11-18.

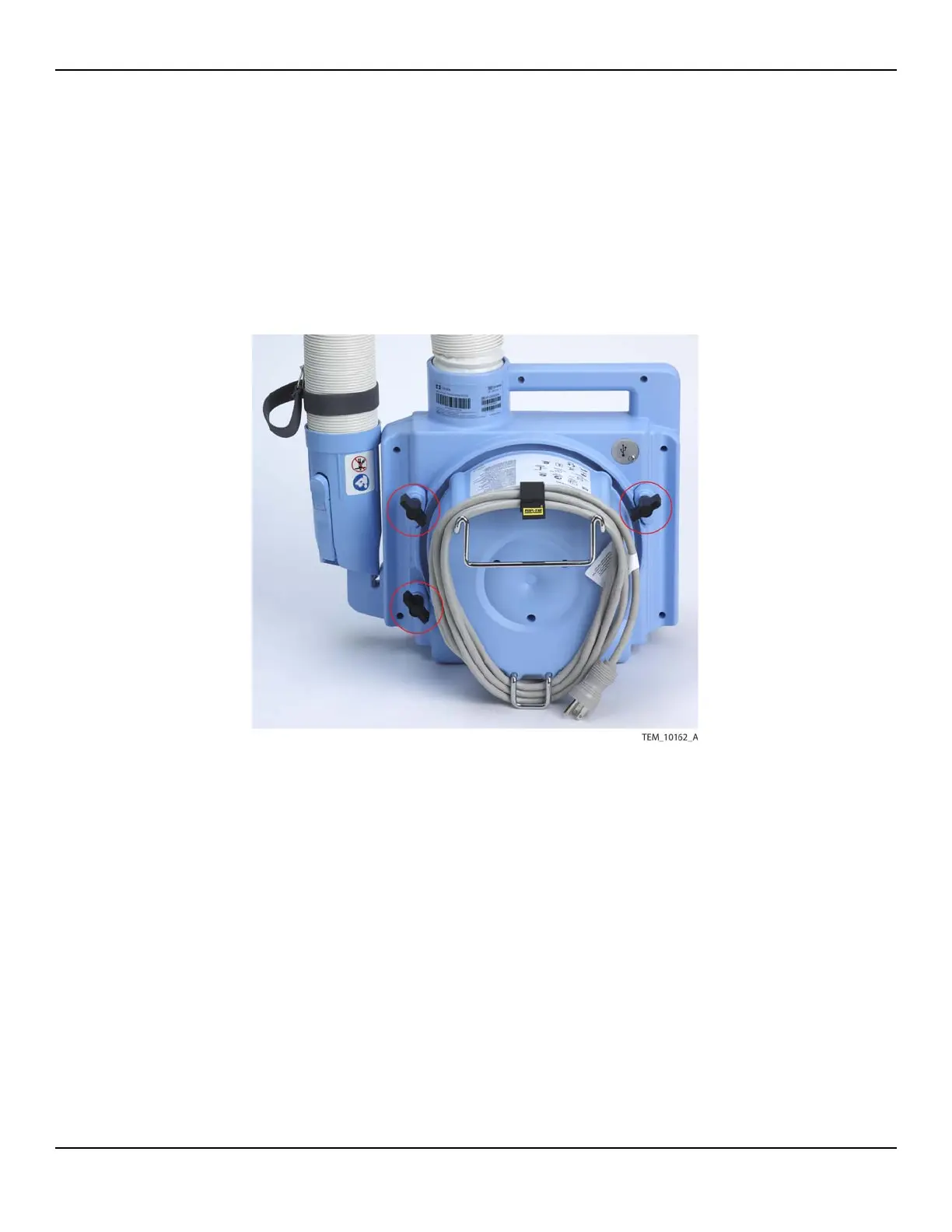

Figure8-1.Pole Clamps

Requirements:

• WT-CWU Pole Clamp Kit (page A-2)

Note: Each kit contains three clamps, knobs, and mounting bolts.

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
