Enclosure Replacement

12-12 Service Manual

12.4 Filter Enclosure Replacement

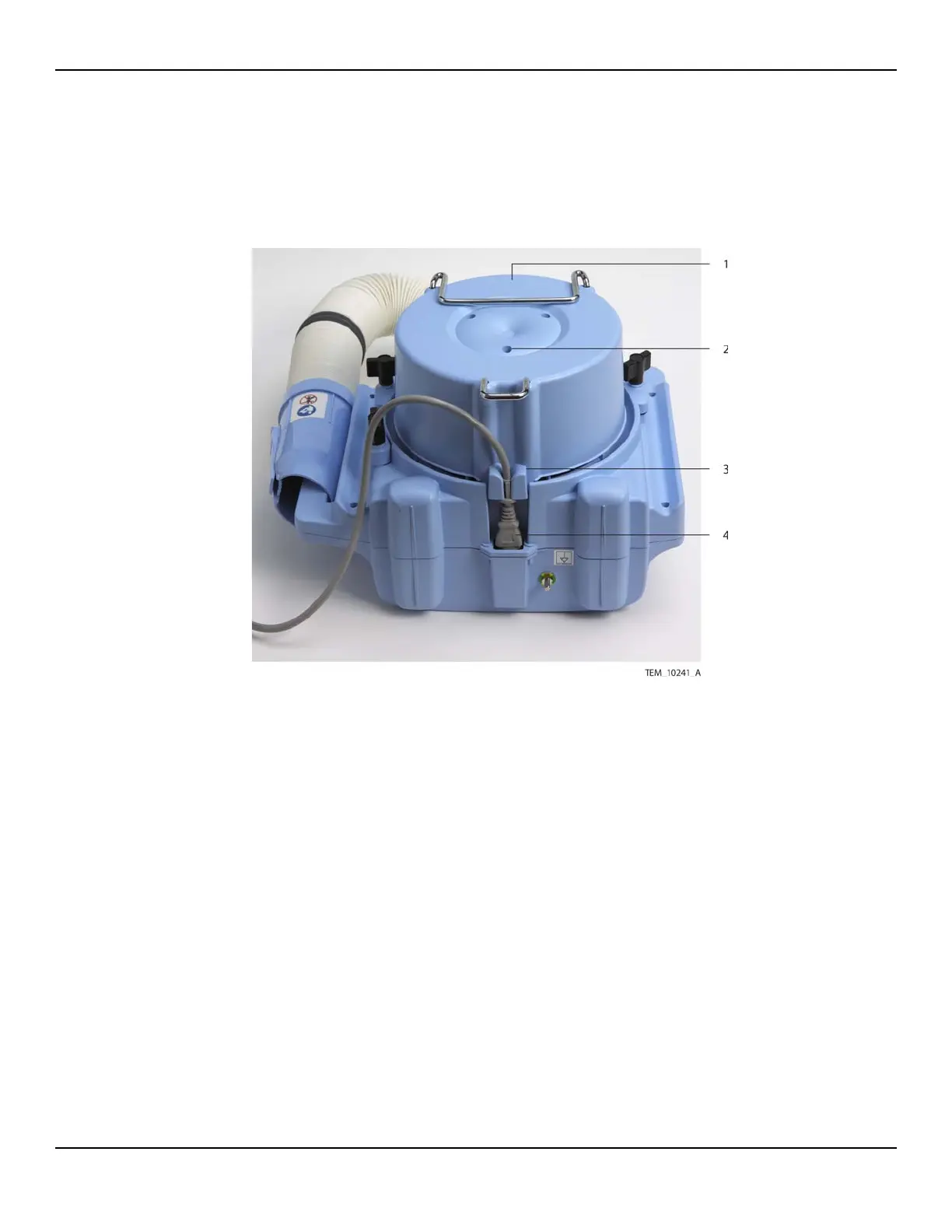

Figure12-9.Filter Enclosure

Requirements:

• WT-CWU Filter Enclosure Kit (page A-6)

• Torque driver with #2 Phillips bit

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.

 WARNING:

Do not operate the warming unit with the filter enclosure removed.

1 Filter Enclosure 3 Power Cord Routing Bracket

2 Filter Enclosure Screws (x3) 4 Power Cord Connector
