Internal Component Replacement (Inside Rear Enclosure)

11-48 Service Manual

9. Disengage the hose duct adapter from the fan assembly (Figure 11-45).

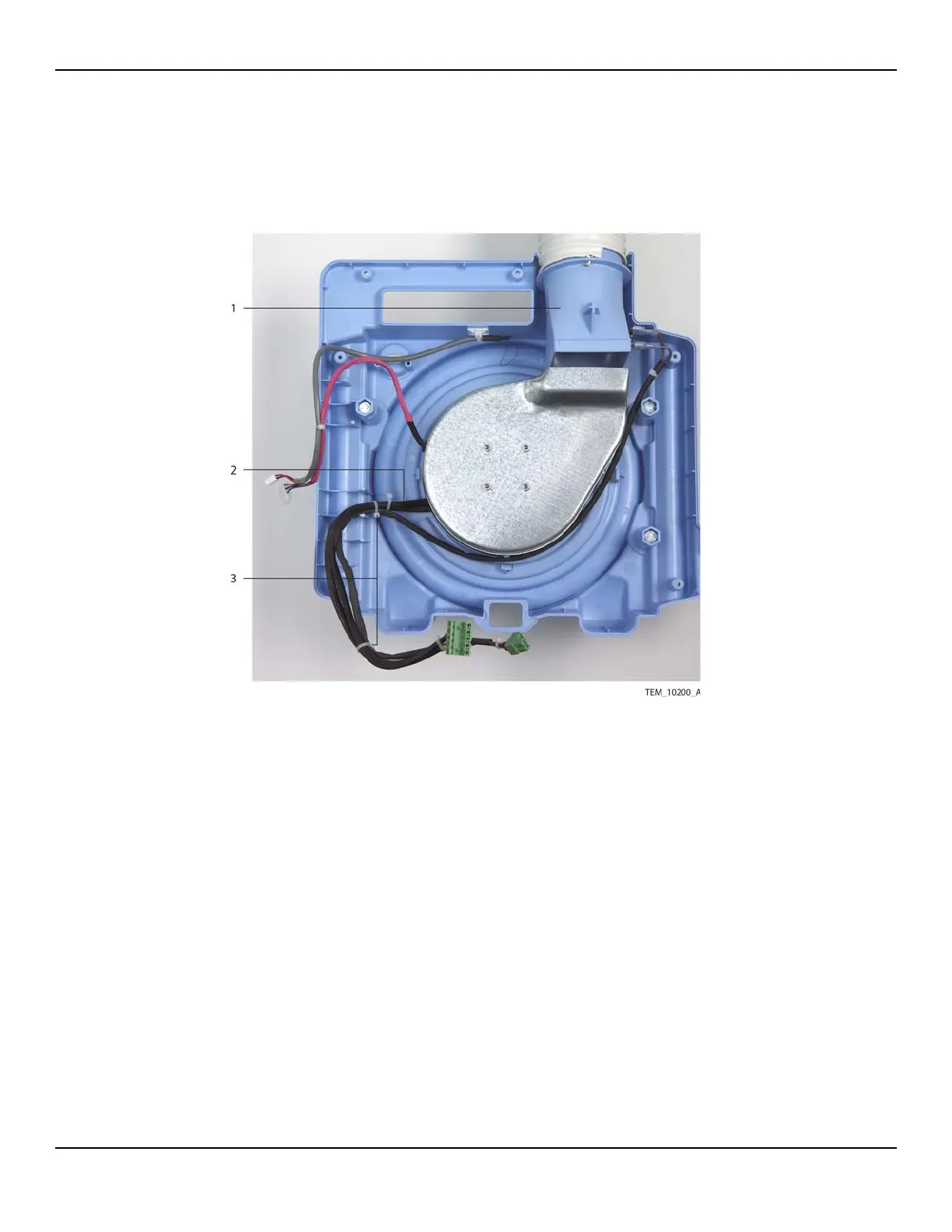

Figure11-45.Fan Assembly and Hose Duct Adapter

10. Carefully cut and remove the cable ties securing the heater cable to the thermo-

stat cable (Figure 11-45).

1 Hose Duct Adapter 3 Cable Ties

(Thermostat Cable to Heater Cable)

2 Heater Cable
