Rejoining the Front and Rear Enclosures

Service Manual 9-5

9.4 Rejoining the Front and Rear Enclosures

Requirements:

• Torque driver with #2 Phillips bit

 Caution:

When rejoining the front and rear enclosures, ensure that no cables are

caught between them.

To rejoin the front and rear enclosures:

1. Carefully rotate the front enclosure onto the rear enclosure, tucking the cables

into the rear enclosure as follows (Figure 9-4):

• Heater and thermostat cables in lower-left corner.

• USB, thermistor, and fan cables in upper-left corner.

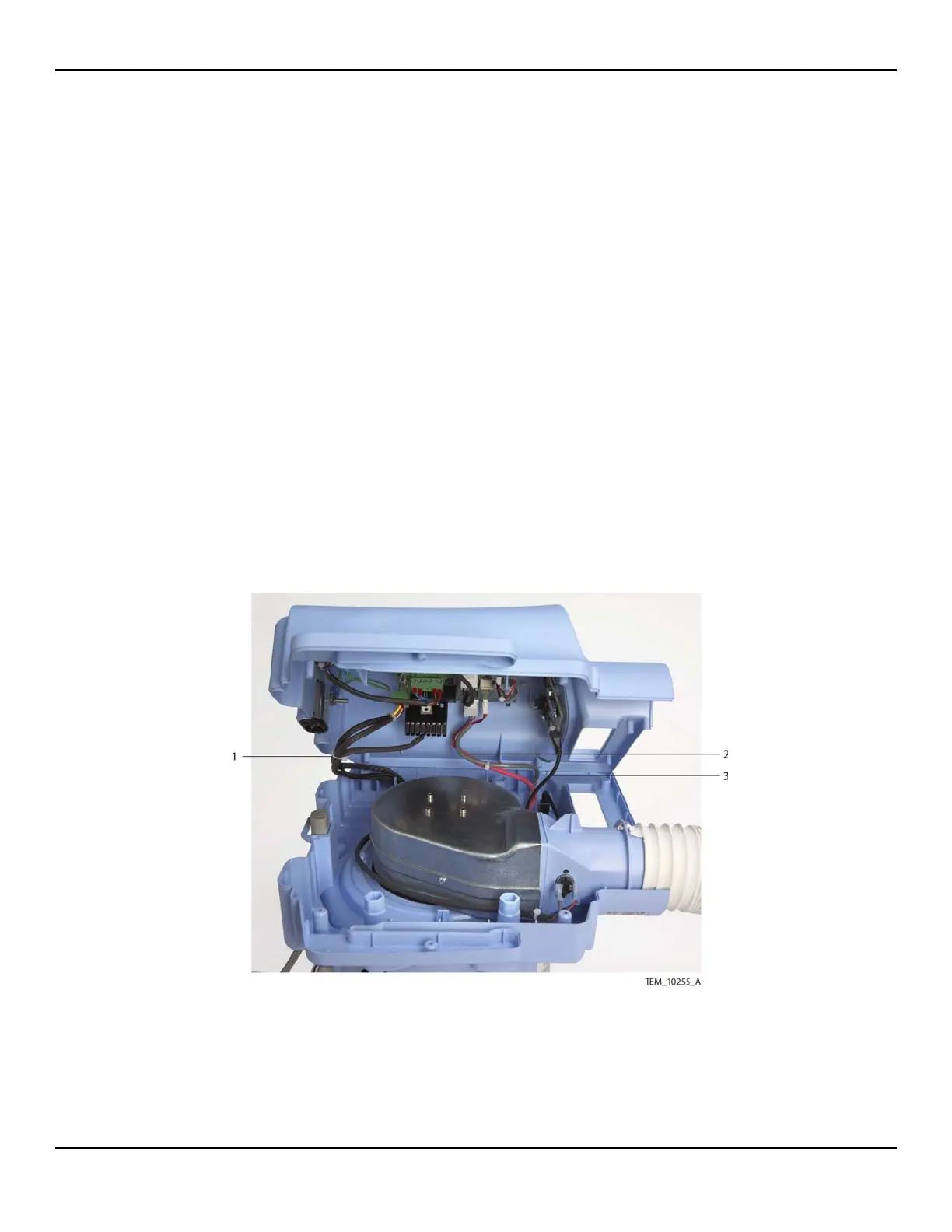

Figure9-4.Rejoining the Enclosures

1 Heater and Thermostat Cables 3 USB Cable

2 Thermistor and Fan Cables
