Parts and Accessories

A-12 Service Manual

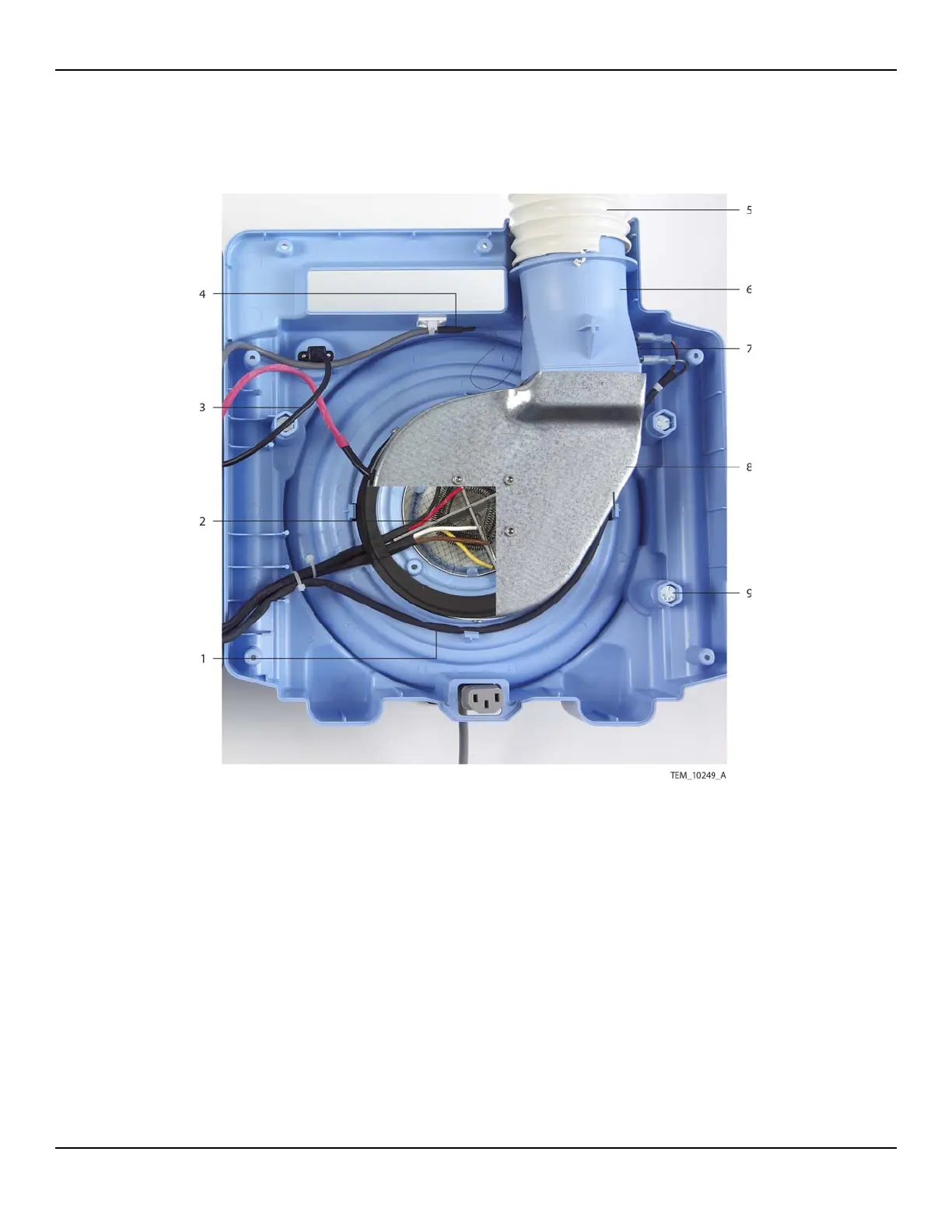

FigureA-6.Internal Components (Inside Rear Enclosure)

1 Thermostat Cable 6 Hose Duct Adapter

2 Heater Assembly

(below Fan Assembly)

7 Thermostat

3 USB Cable 8 Fan Assembly

4 Thermistor Sensor Assembly 9 Pole Clamp Mounting Bolt (x3)

5Hose
