Performance Verification

7-10 Service Manual

7.5.5 Flow Test

Use the flow test to confirm fan functionality.

To perform the flow test:

1. Position the hose on the nozzle hook with the hose compressed as much as pos-

sible (Figure 7-5).

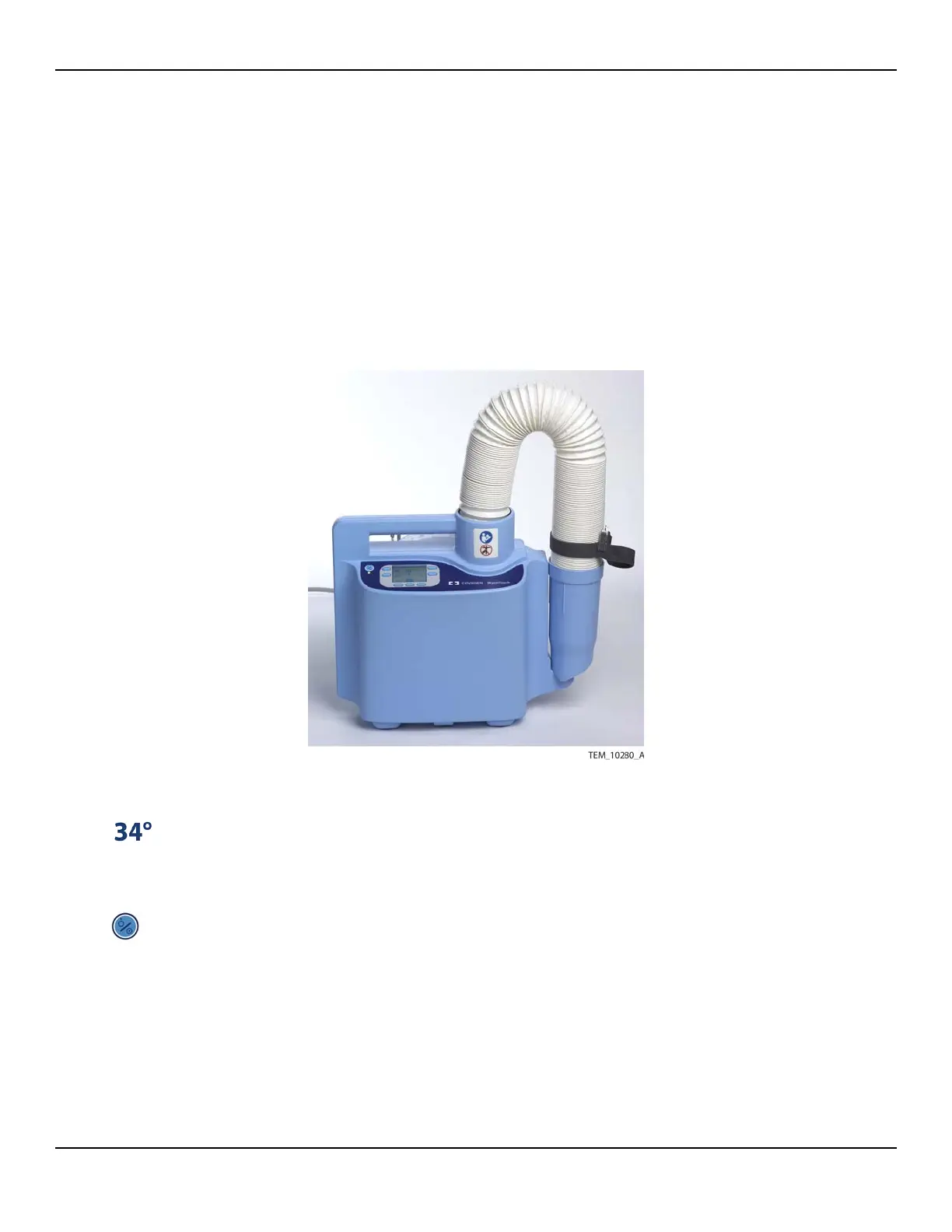

Figure7-5.Position of Hose for Flow Test

2. Perform steps 1 and 2 of the power-on test (page 7-3).

3. Press the 34°C key. The fan should ramp up to operating speed and air should

flow from the nozzle. Confirm that no alarms occur.

4. When finished with all testing:

a. Press the On/Standby key to power off the unit.

b. Unplug the unit from the outlet.

Flow Test Failure

If the test fails, see Basic Troubleshooting on page 6-9.
