Covidien WarmTouch - Figure 11-43 Power PCBA Connections

To Next Page

To Previous Page

Internal Component Replacement (Inside Rear Enclosure)

11-46 Service Manual

5. Disconnect the following cables from the Power PCBA (Figure 11-43):

a. Disconnect the thermistor cable from the 2-pin P108 connector.

b. Disconnect the fan cable from the 4-pin P111 connector.

c. Disconnect the thermostat cable from the 2-pin P113 connector.

d. Disconnect the heater cable from the 5-pin P114 connector.

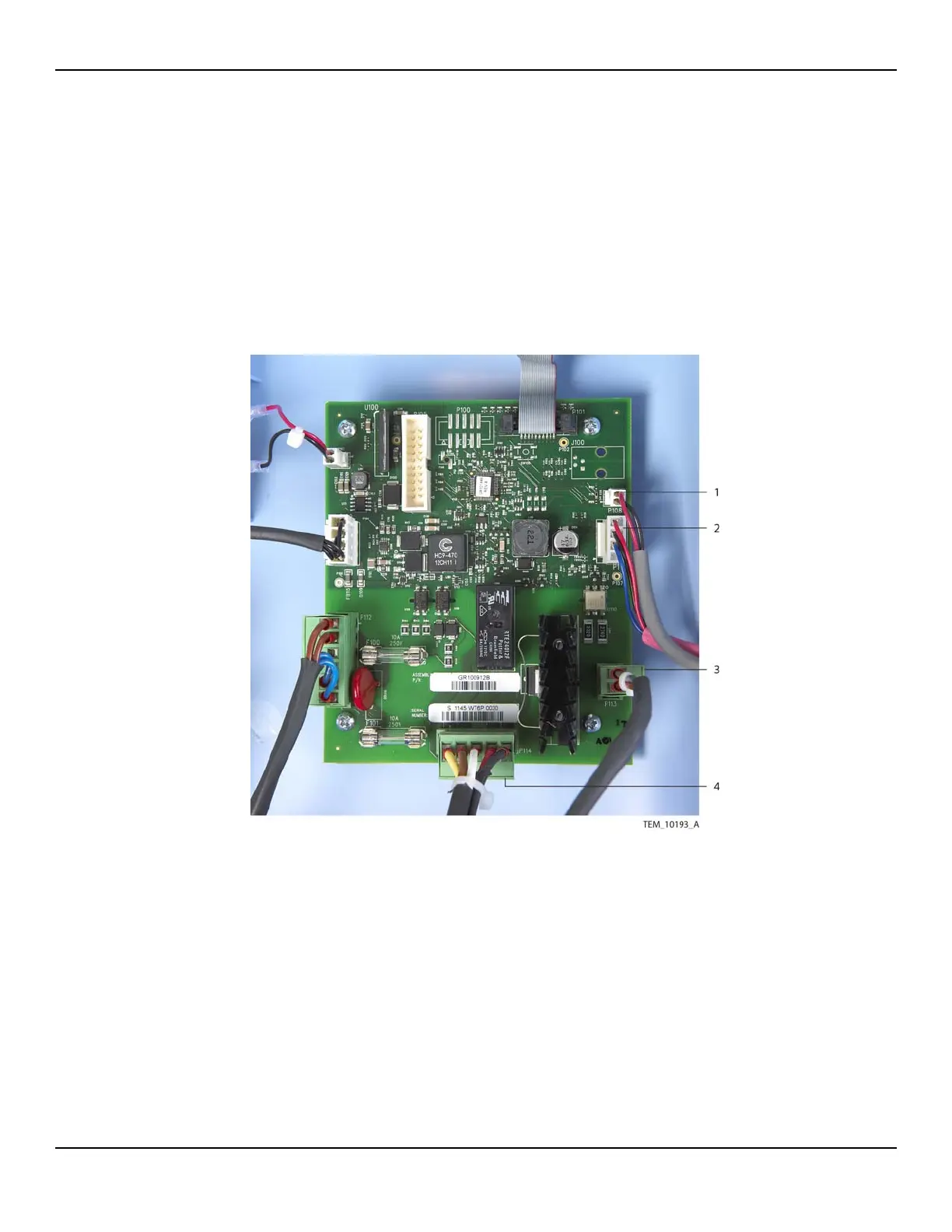

Figure11-43.Power PCBA Connections

6. Turn the now separated rear enclosure over so you can access the back of the unit.

1 Thermistor Cable

(P108 Connection)

3 Thermostat Cable

(P113 Connection)

2 Fan Cable

(P111 Connection)

4 Heater Cable

(P114 Connection)
