Internal Component Replacement (Inside Front Enclosure)

10-48 Service Manual

10.15 Ground Cable Replacement

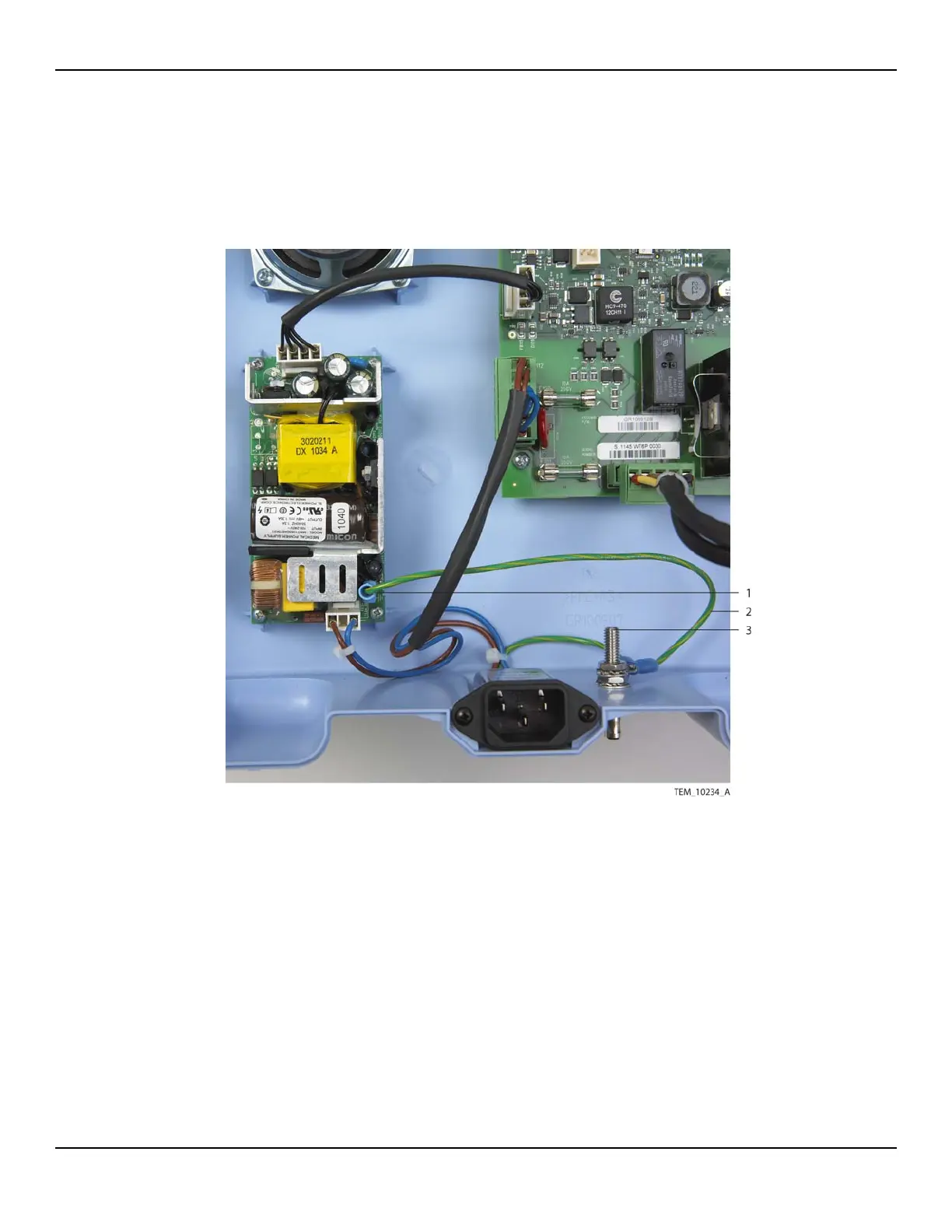

Figure10-35.Ground Cable

Requirements:

• WT-CWU Ground Cable Kit (page A-4)

• Torque driver with #2 Phillips bit and 10mm hex socket

1 GND Terminal

(Power Supply)

3 Equipotential Stud

2 Ground Cable
