Power Cord Replacement

Service Manual 8-5

8.5 Power Cord Replacement

 WARNING:

The use of accessories or cables with the warming system other than those

indicated in this manual may result in non-compliance with the specifications

listed in Electromagnetic Compatibility (EMC) on page 13-4.

The power cord requires proper disposal in accordance with WEEE Directive.

Do not dispose of this item as unsorted municipal waste.

There are several power cord options available for the warming unit. Ensure

that the replacement power cord is appropriate to the country of use.

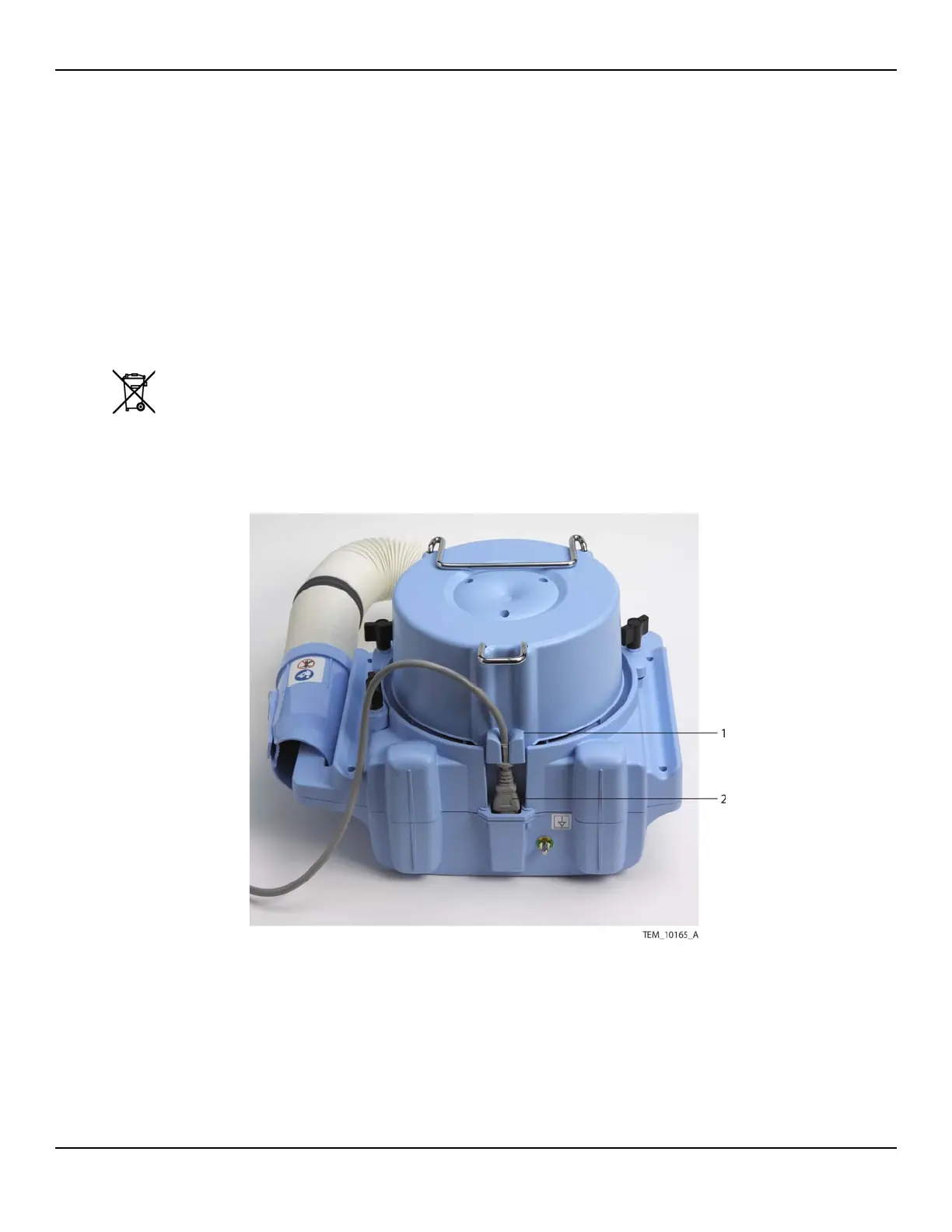

Figure8-4.Power Cord Connection

1 Power Cord Routing Bracket 2 Power Cord Connector
