Covidien WarmTouch - 10.5 User Interface (UI) PCBA Replacement

To Next Page

To Previous Page

Internal Component Replacement (Inside Front Enclosure)

10-12 Service Manual

10.5 User Interface (UI) PCBA Replacement

The UI PCBA and the battery on the PCBA require proper disposal in

accordance with WEEE Directive. Do not dispose of these items as unsorted

municipal waste.

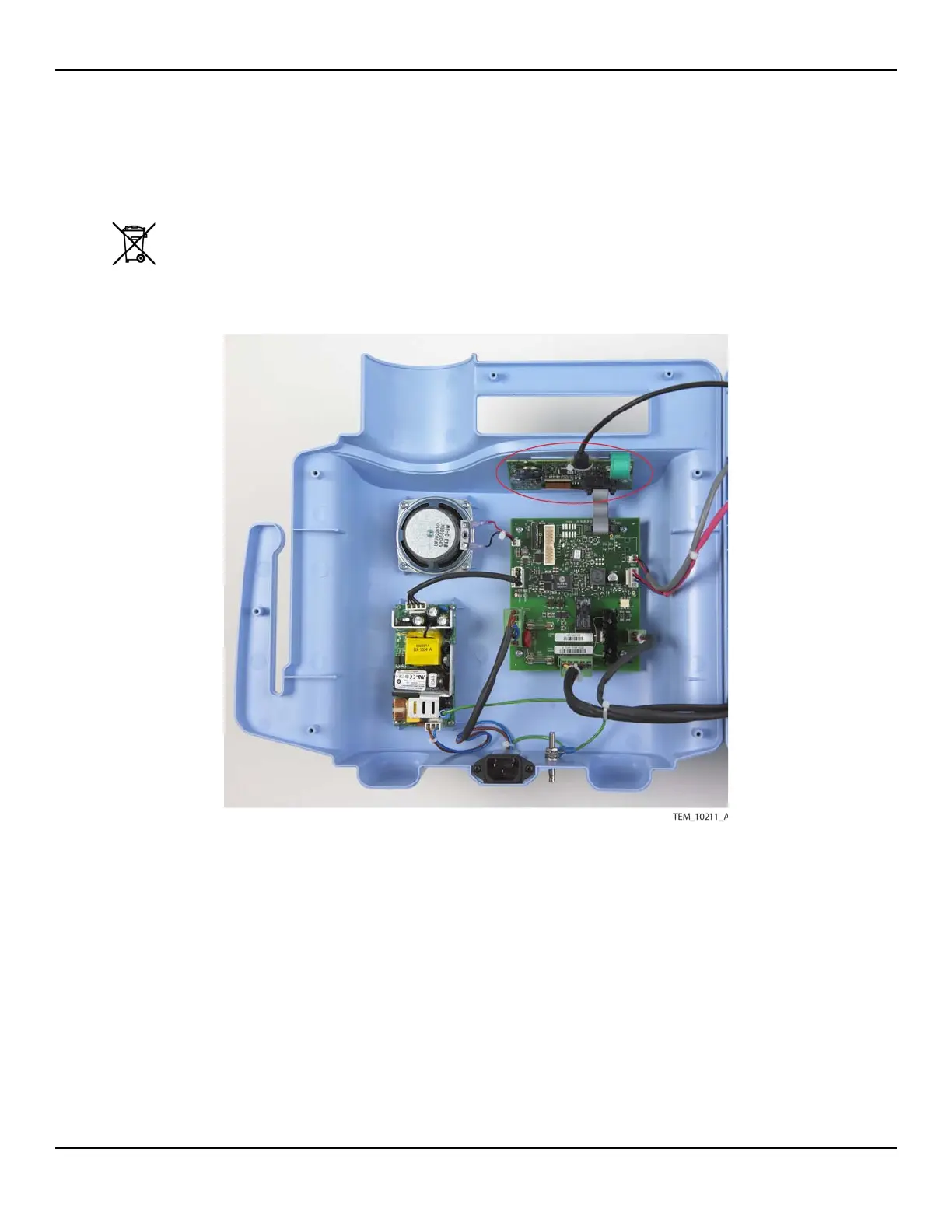

Figure10-10.UI PCBA

Requirements:

• WT-CWU UI PCBA Kit (page A-3)

• Torque driver with #2 Phillips bit and 11/32” hex socket

• Wire cutters

• 1 cable tie
