Covidien WarmTouch - Figure 10-21 Attaching Backing Plate and Cable Tie to UI PCBA

To Next Page

To Previous Page

Internal Component Replacement (Inside Front Enclosure)

10-26 Service Manual

c. From the back of the PCBA, insert the cable tie through the opposite hole in

the backing plate to the front of the PCBA.

d. Connect the USB cable to the J203 connector.

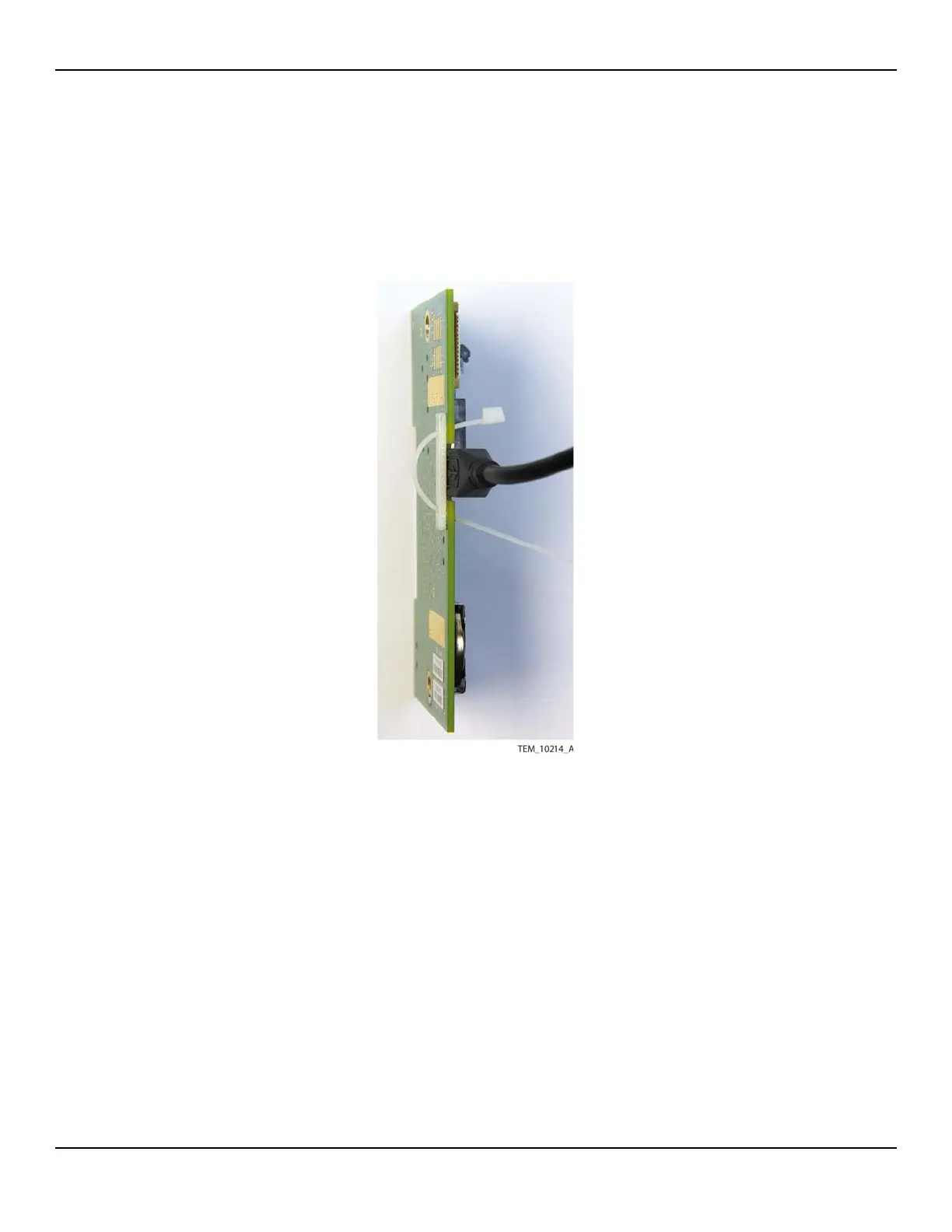

Figure10-21.Attaching Backing Plate and Cable Tie to UI PCBA

e. Adjust the cable tie so that the lock is snug against the PCBA.

f. Secure the USB cable by pulling the cable tie through the lock until the tie is

snug against the connector.

g. Trim off the end of the cable tie.
