Internal Component Replacement (Inside Front Enclosure)

10-22 Service Manual

10.7 USB Cable Replacement

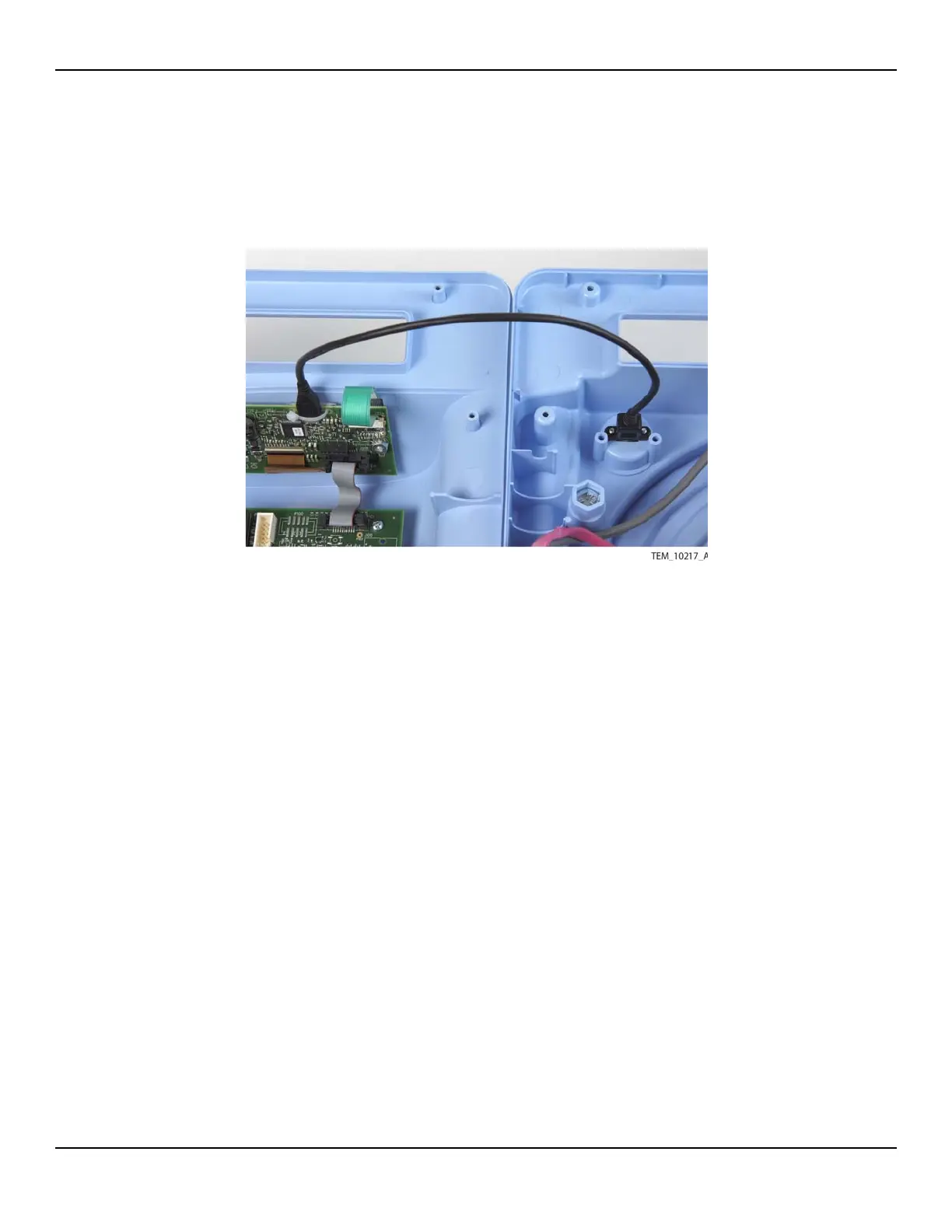

Figure10-17.USB Cable

Requirements:

• WT-CWU USB Micro AB Cable Kit (page A-3)

• Torque driver with #1 and #2 Phillips bits and 11/32” hex socket

• Wire cutters

• 1 cable tie

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
