Covidien WarmTouch - Figure 10-14 Keypad Cable Secured by Locking Bar

To Next Page

To Previous Page

Internal Component Replacement (Inside Front Enclosure)

10-18 Service Manual

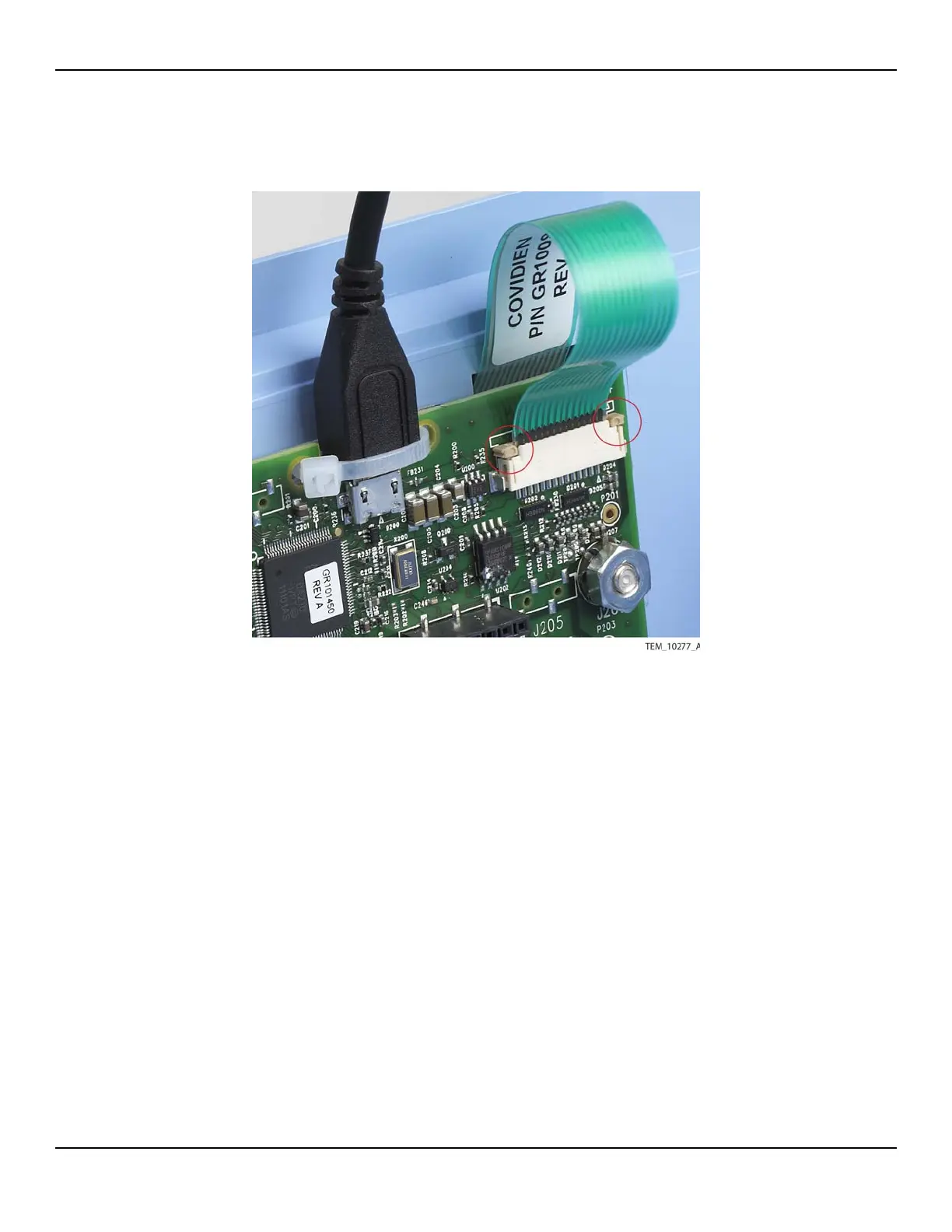

Figure10-14.Keypad Cable Secured by Locking Bar

9. Follow the procedure Rejoining the Front and Rear Enclosures on page 9-5.

10. Perform the following tests:

a. Keypad Test on page 7-5.

b. Display Test on page 7-7.

c. Electrical Safety Tests on page 7-14.
