Ribbon Cable Replacement

Service Manual 10-19

10.6 Ribbon Cable Replacement

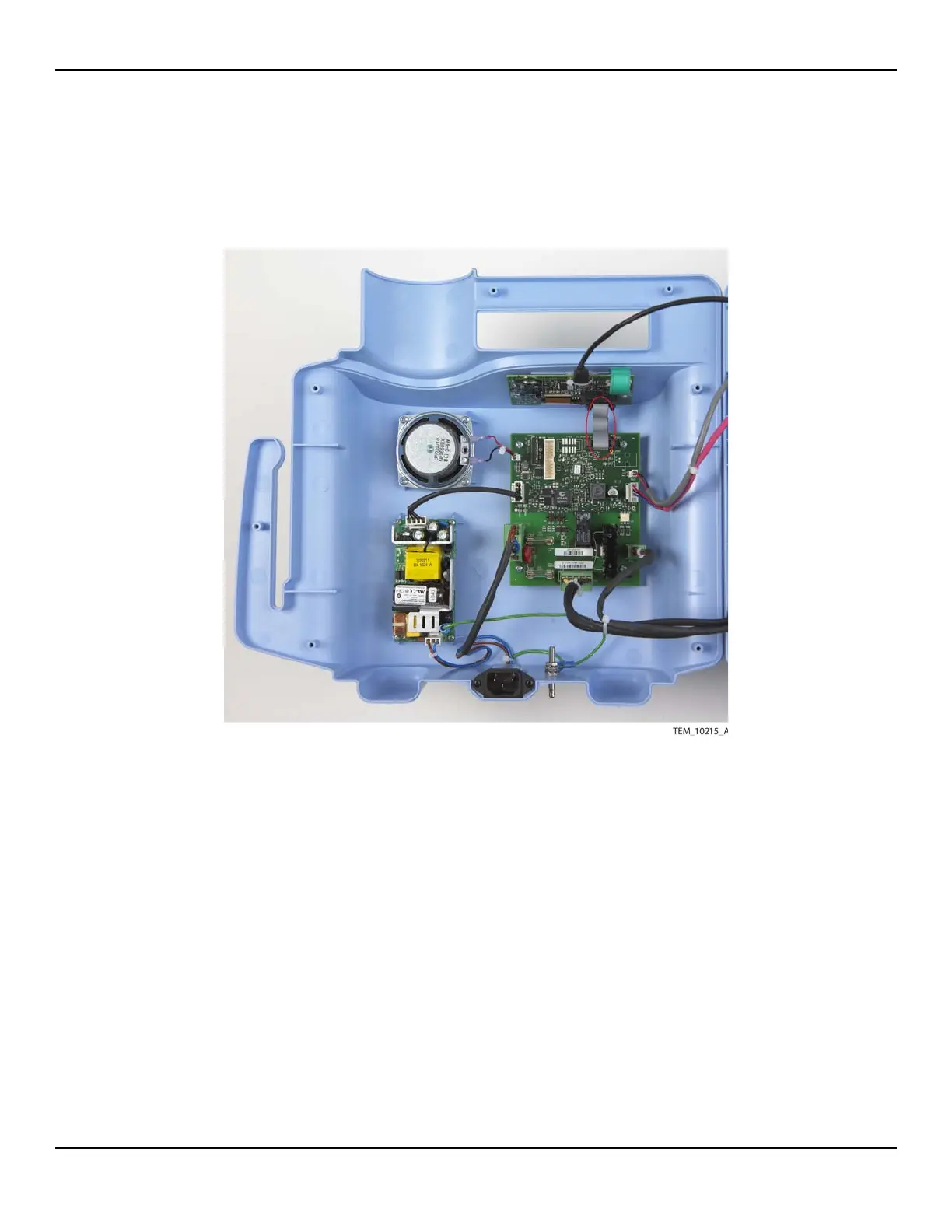

Figure10-15.Ribbon Cable

Requirements:

• WT-CWU Ribbon Cable Kit (page A-3)

• Torque driver with #2 Phillips bit

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
