Internal Component Replacement (Inside Front Enclosure)

10-6 Service Manual

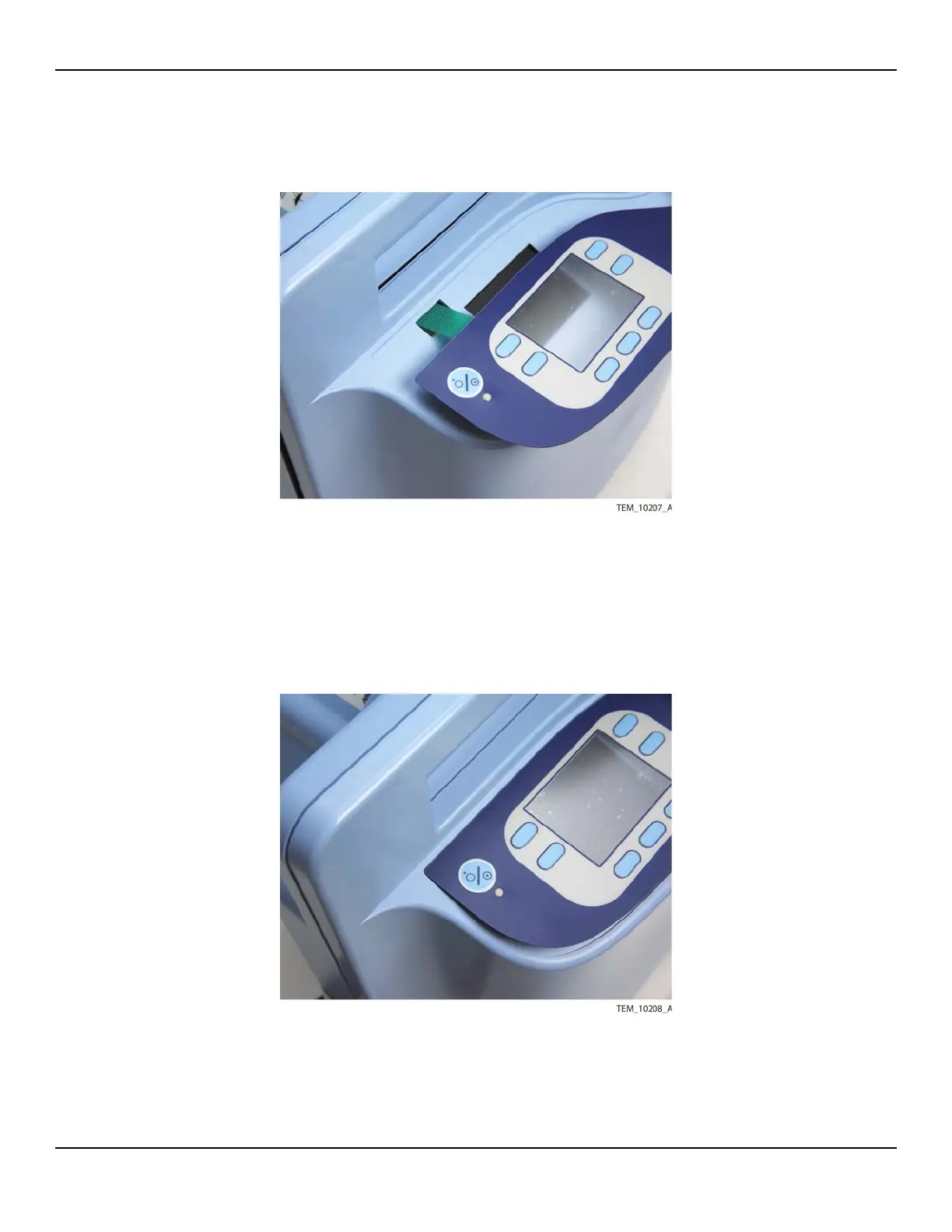

Figure10-4.Feeding the Keypad Cable Through the Access Slot

b. Align the keypad with the top edge of the recess, and press the top edge of

the keypad against the recess (Figure 10-5).

c. Rub the keypad downward towards the bottom edge across its full width to

engage the adhesive, taking care to eliminate any air from the seal.

Figure10-5.Aligning the Keypad
