Covidien WarmTouch - Figure 12-16 Cable Ties to be Removed from Rear Enclosure

To Next Page

To Previous Page

Rear Enclosure Replacement

Service Manual 12-21

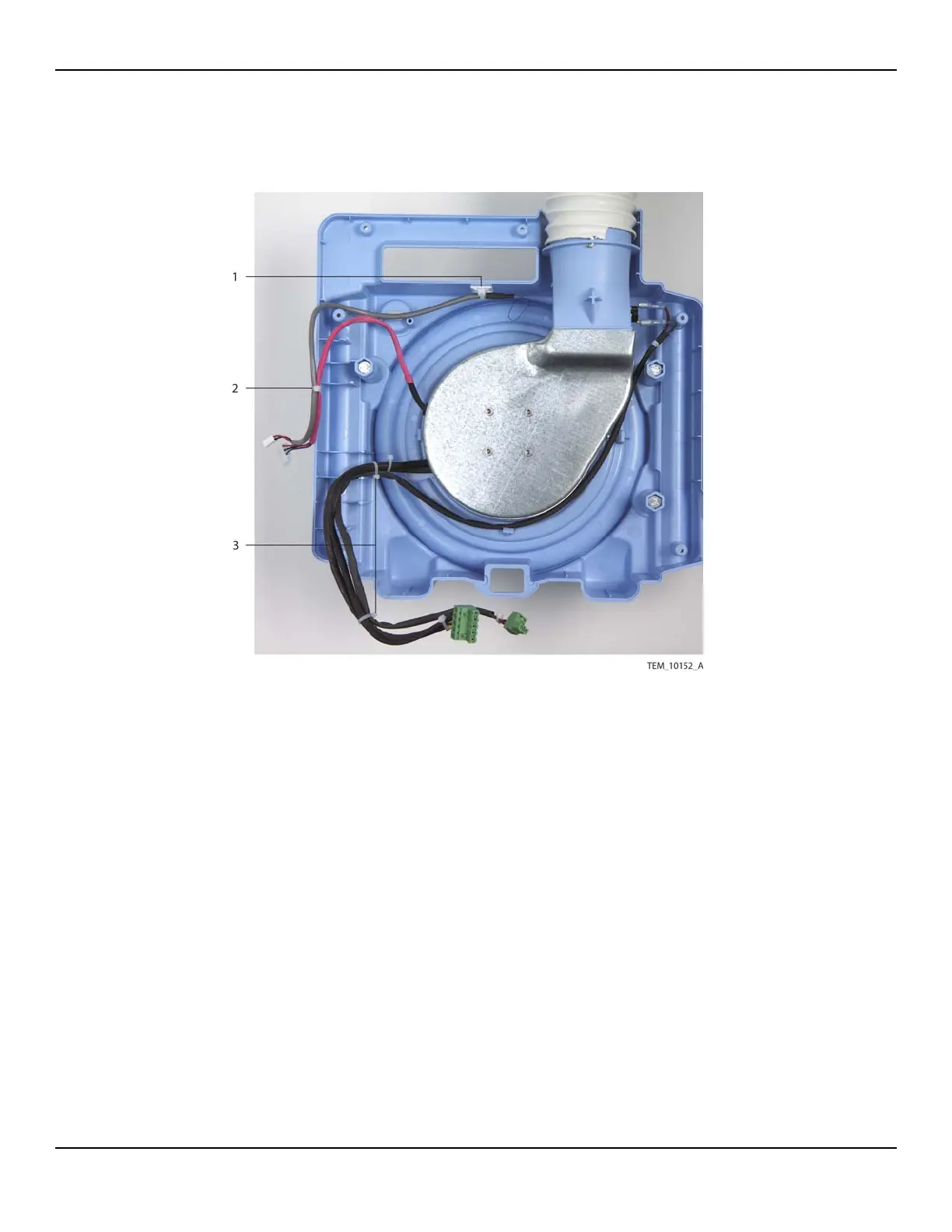

Figure12-16.Cable Ties to be Removed from Rear Enclosure

6. Turn the rear enclosure over.

1 Cable Tie and Tie Mount

(Thermistor Cable)

3 Cable Ties (Heater Cable to

Thermostat Cable)

2 Cable Tie (Fan Cable to

Thermistor Cable)
