Internal Component Replacement (Inside Front Enclosure)

10-46 Service Manual

10.14 Power Supply Output Cable Replacement

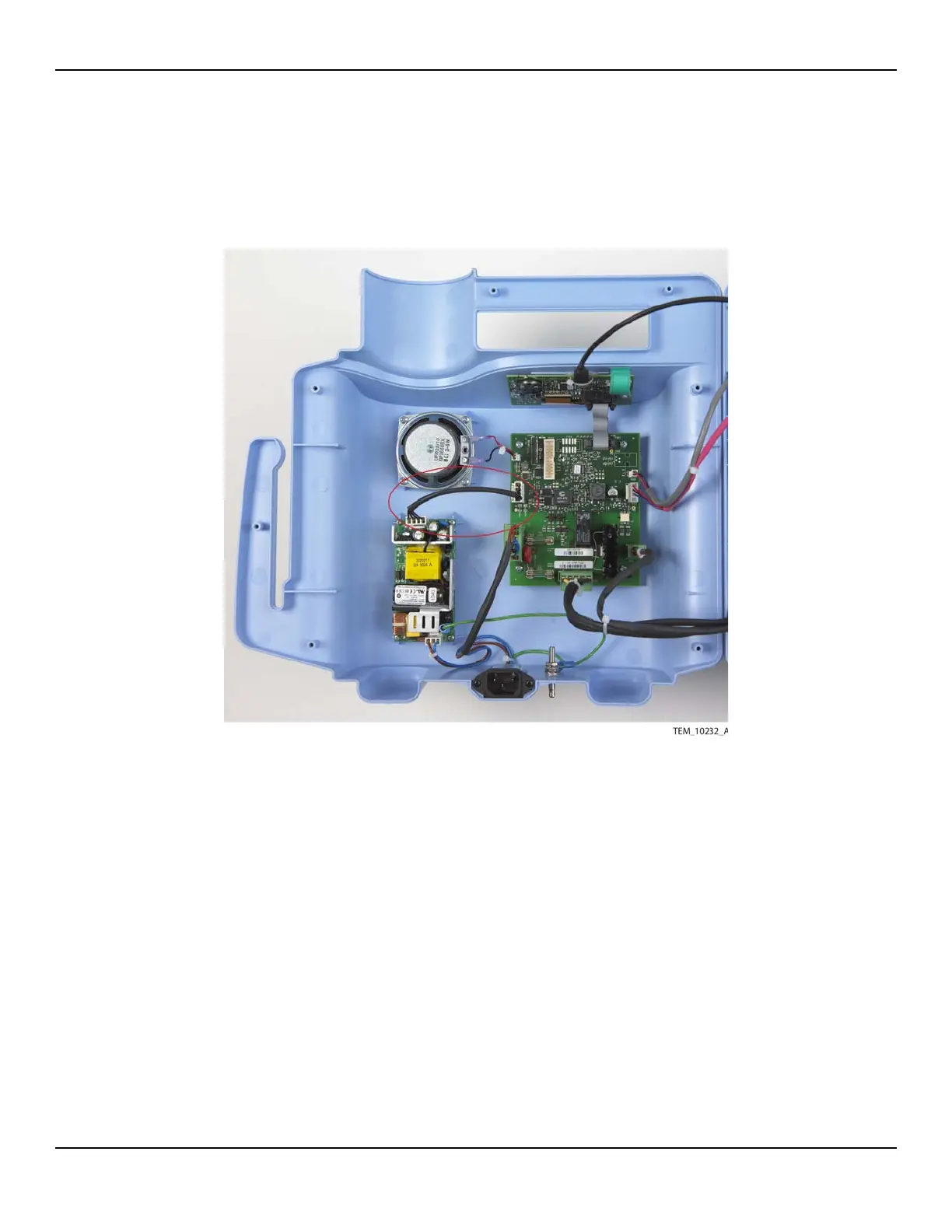

Figure10-33.Power Supply Output Cable

Requirements:

• WT-CWU P/S Output Cable Kit (page A-4)

• Torque driver with #2 Phillips bit

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
