Internal Component Replacement (Inside Rear Enclosure)

11-44 Service Manual

Requirements:

• WT-CWU Heater Assembly Kit (page A-5)

• Torque driver with #1 and #2 Phillips bits

• Wire cutters

• 2 cable ties

• Strap or additional cable tie to wrap around the hose duct adapter

• 70% isopropyl alcohol solution and soft cloth

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.

To replace the heater assembly:

1. At the back of the unit, loosen the screw securing the cover over the USB port,

and rotate the cover aside (Figure 11-41). Do not remove the cover.

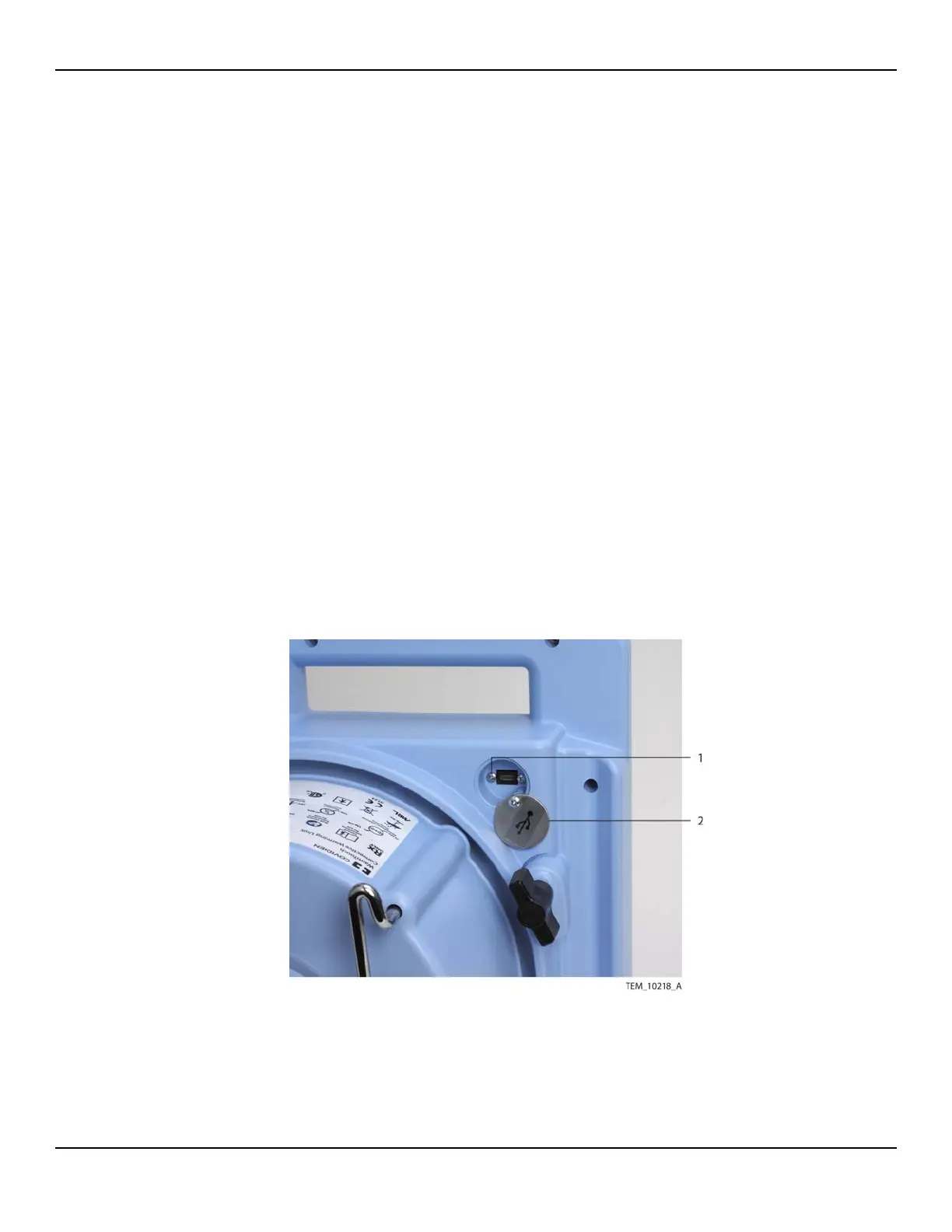

Figure11-41.USB Port

1 USB Connector Screw (x2) 2 USB Port Cover
