Troubleshooting

6-12 Service Manual

6.5 Alarms

If an alarm condition or error occurs during operation, the warming unit

sounds alarm tones and displays an alarm screen. There are two types of

alarms: low-priority and medium-priority.

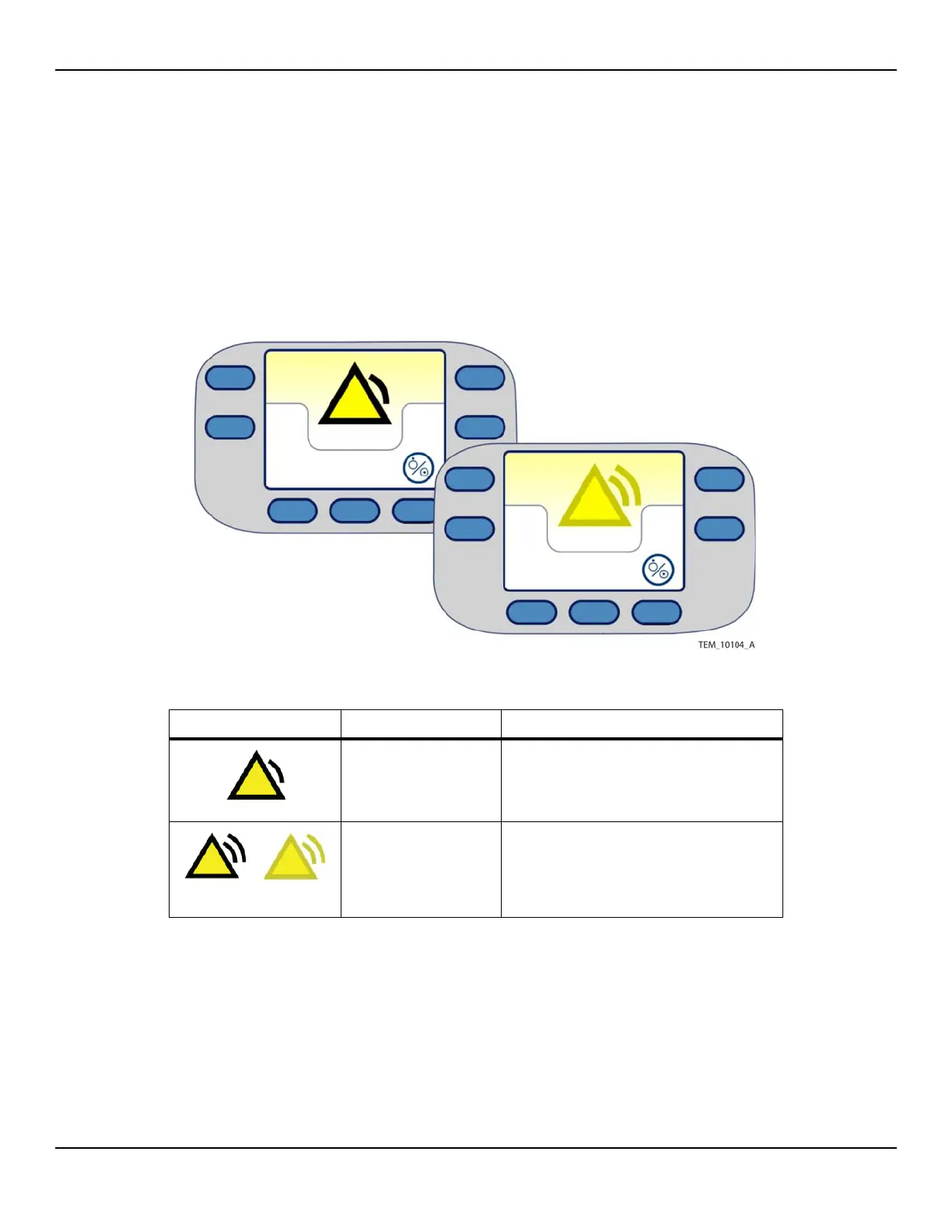

Figure6-3.Low-Priority Alarm (Left) and Medium-Priority Alarm (Right)

 Note:

If multiple alarms occur at the same time, the unit reports the highest priority alarm.

Table6-2.Alarm Indicators

Symbol Tones Type of Alarm

Two successive tones

repeating

Low-priority alarm: A condition that

requires operator awareness.

(flashing)

Three successive tones

repeating at decreasing

intervals

Medium-priority alarm: A condition that

requires prompt operator response.
