Thermostat Replacement

Service Manual 11-9

11.4 Thermostat Replacement

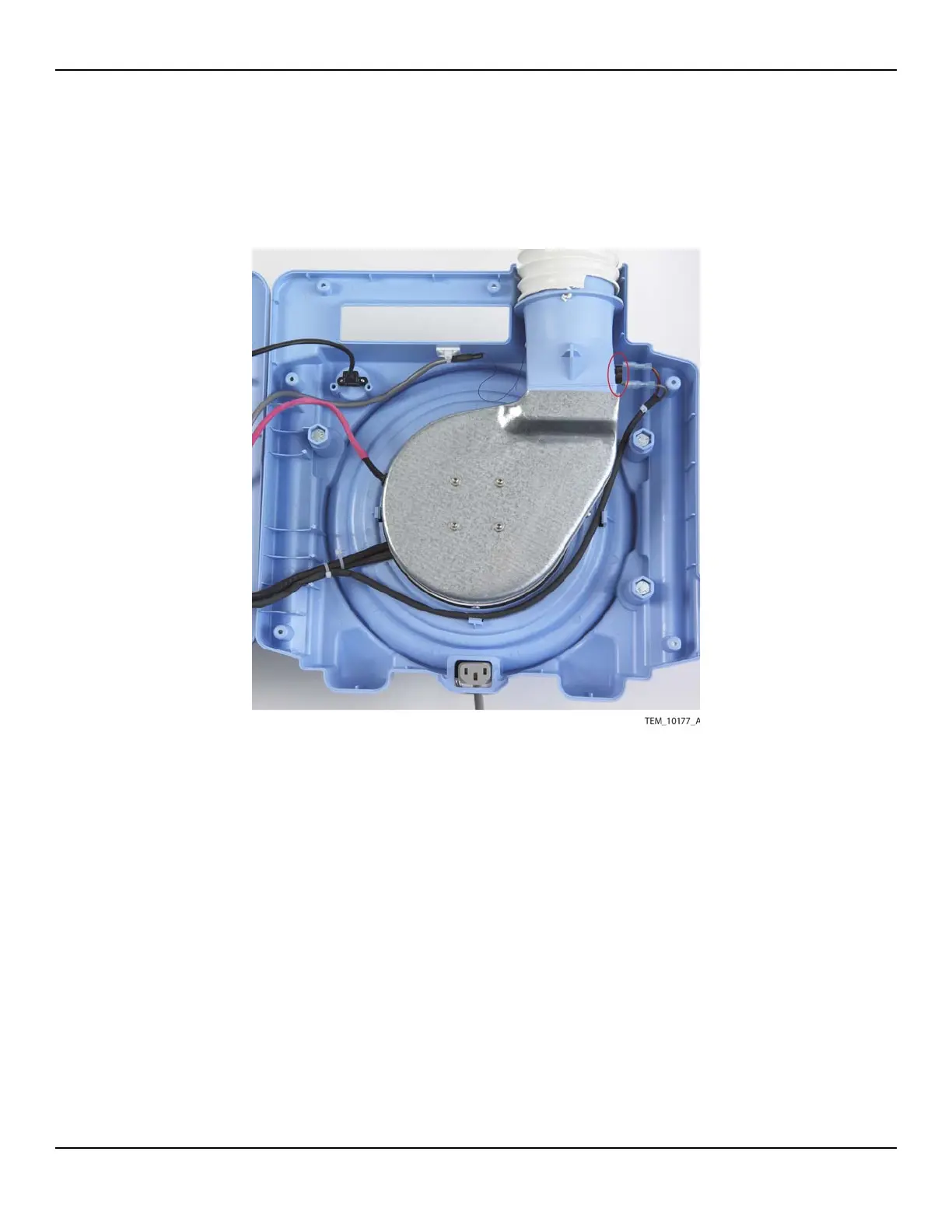

Figure11-8.Thermostat

Requirements:

• WT-CWU Thermostat Kit (page A-5)

• Torque driver with #2 Phillips bit

• Small flat-blade screwdriver

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
