Maintenance

5-6 Service Manual

3. Remove the three screws from the filter enclosure. Lift the enclosure away from

the unit, disengaging the power cord from its socket. Set the enclosure and

attached power cord aside.

 Caution:

The institution should follow local governing ordinances and recycling

instructions regarding disposal or recycling of filter and device

components or end of life of the product.

4. Remove the filter (Figure 5-3). Dispose of the filter as required by local governing

ordinances.

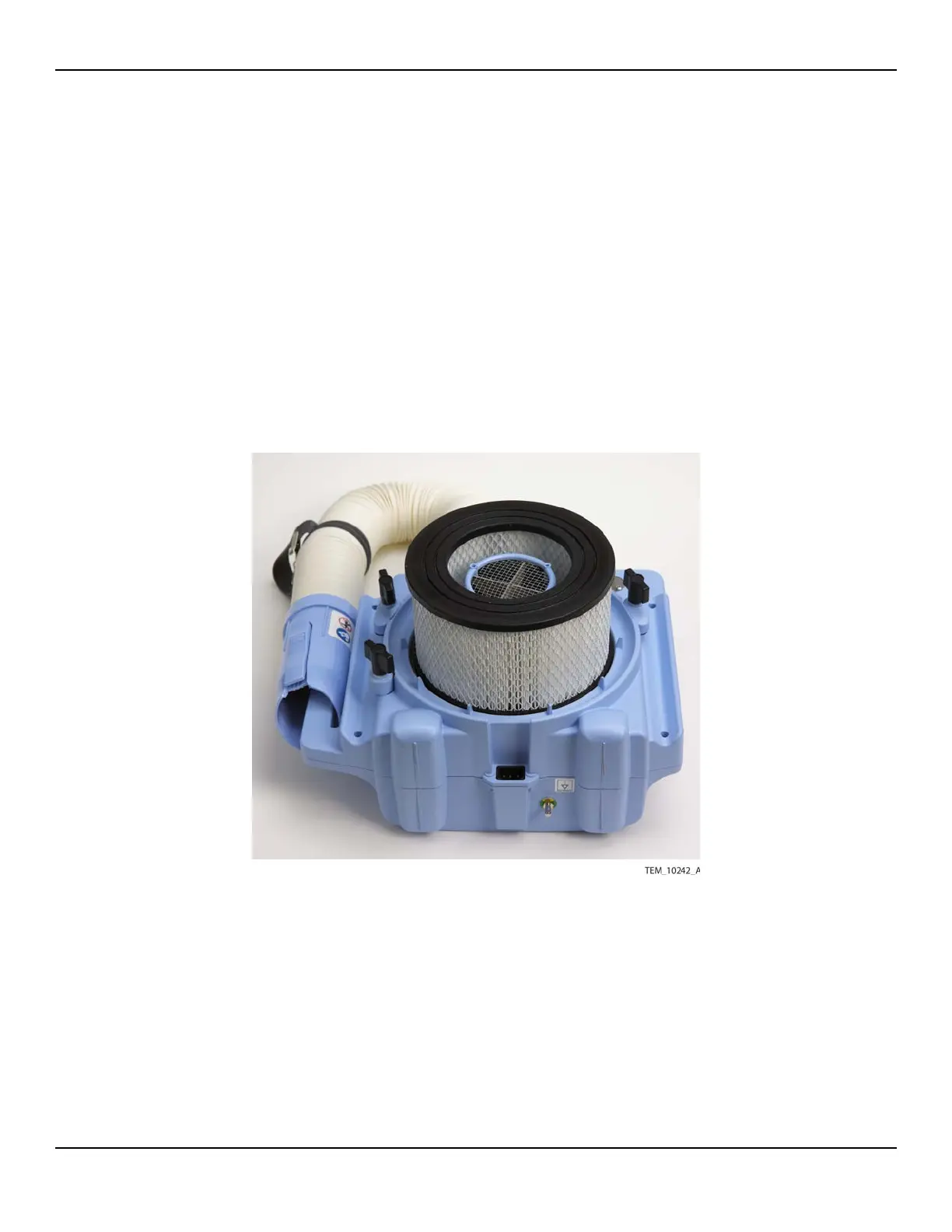

Figure5-3.HEPA Filter

5. Place the new filter on the unit.
