Thermostat Cable Replacement

Service Manual 11-15

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.

To replace the thermostat cable:

1. Follow the procedure Separating the Front and Rear Enclosures on page 9-2.

2. Disconnect the thermostat cable from the 2-pin P113 connector on the Power

PCBA (Figure 11-14).

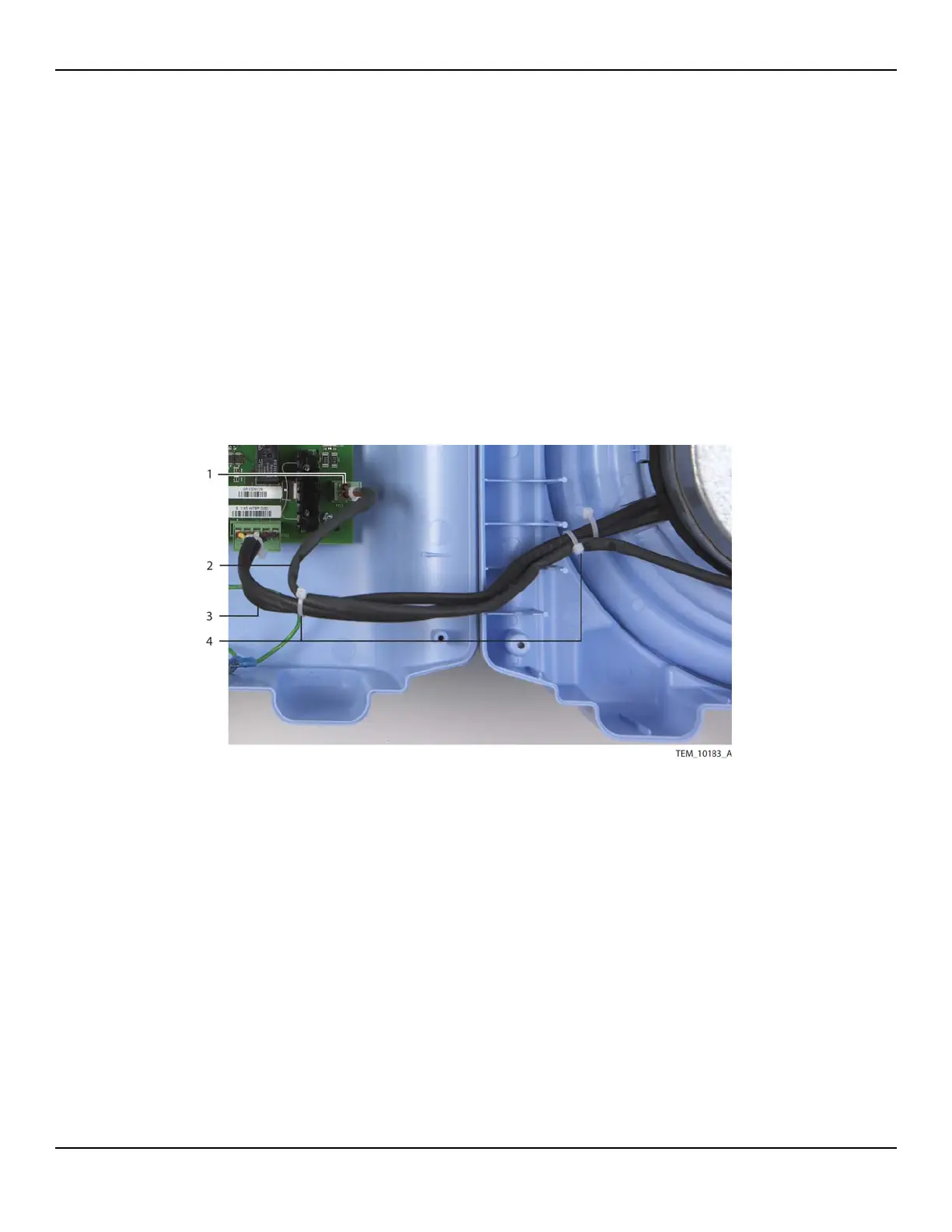

Figure11-14.Thermostat Cable Connection to Power PCBA

3. Carefully cut and remove the two cable ties securing the thermostat cable to the

heater cable.

1 P113 Connection

(Power PCBA)

3 Heater Cable

2 Thermostat Cable 4 Cable Ties (Thermostat Cable

to Heater Cable)
