Speaker Replacement

Service Manual 10-37

10.11 Speaker Replacement

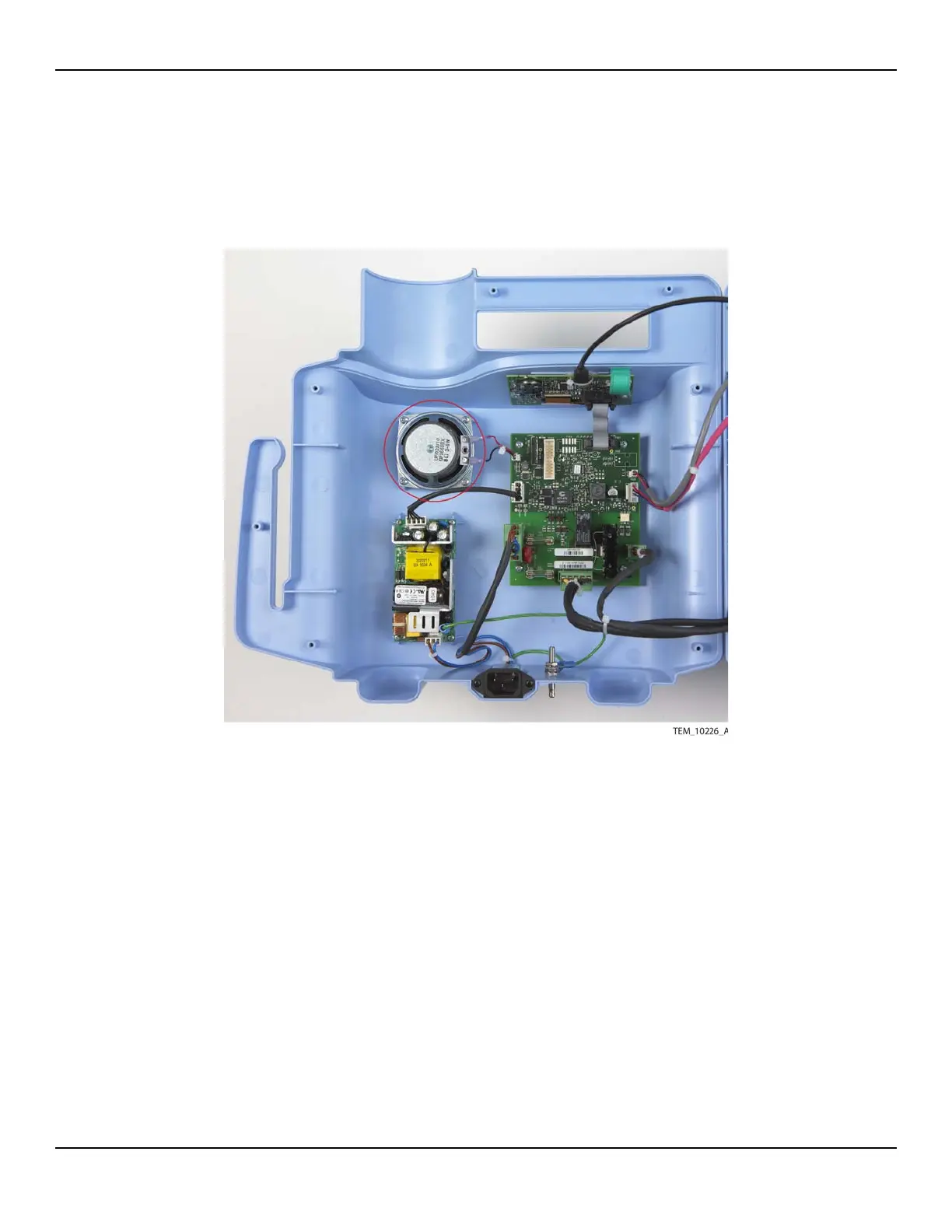

Figure10-27.Speaker

Requirements:

• WT-CWU Speaker Kit (page A-3)

• Torque driver with #2 Phillips bit

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
