Covidien WarmTouch - Figure 11-35 Cable Tie Securing Fan Cable to Thermistor Cable

To Next Page

To Previous Page

Internal Component Replacement (Inside Rear Enclosure)

11-38 Service Manual

9. Carefully cut and remove the cable tie securing the fan cable to the thermistor

cable (Figure 11-35).

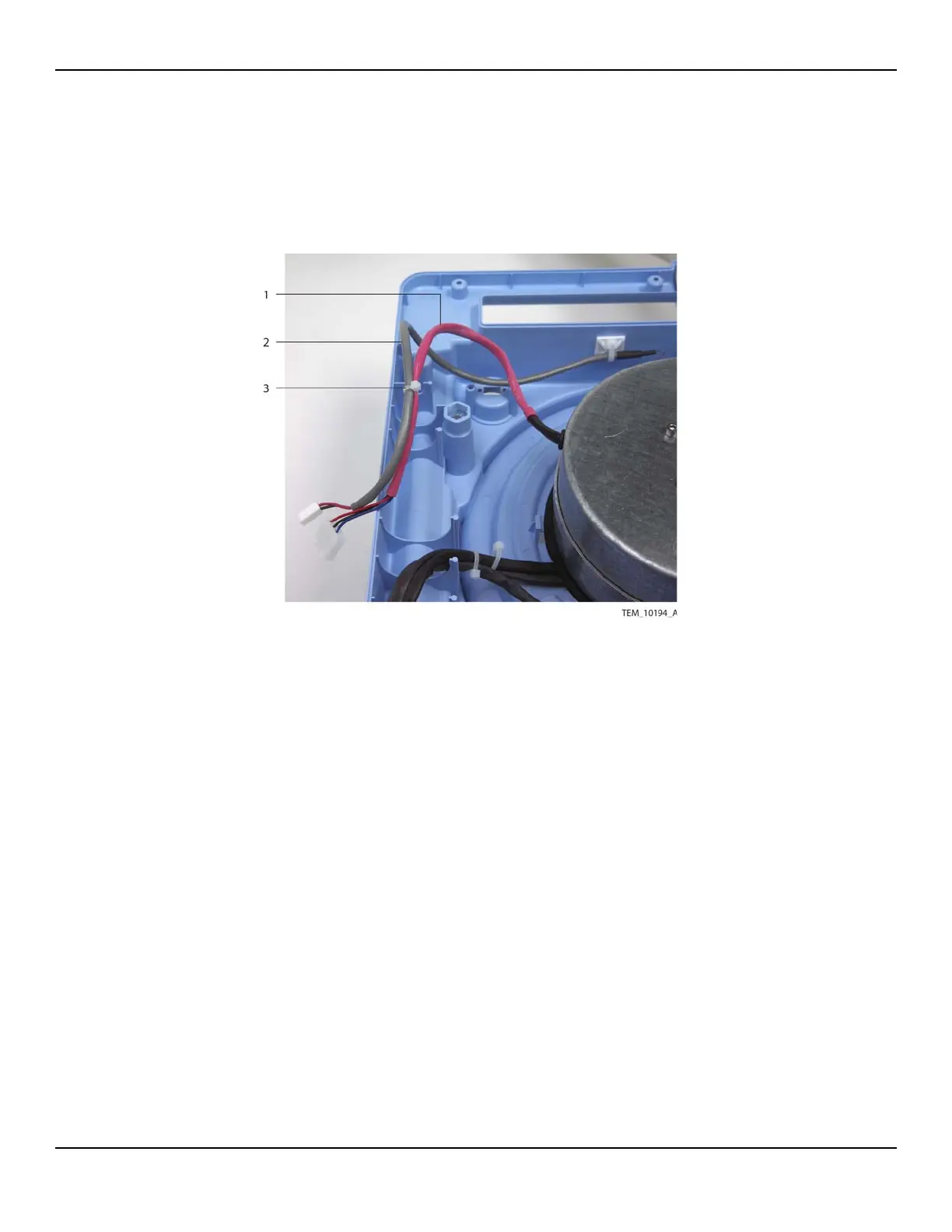

Figure11-35.Cable Tie Securing Fan Cable to Thermistor Cable

 Caution:

Be careful when moving the hose duct adapter. The connected thermistor

wire can break if too much stress is applied to it.

10. Disengage the hose duct adapter from the fan assembly, and lift the fan assembly

out of the unit.

1 Fan Cable 3 Cable Tie

2 Thermistor Cable
