Covidien WarmTouch - Figure 12-7 UI PCBA Connections

To Next Page

To Previous Page

Enclosure Replacement

12-8 Service Manual

7. Remove the UI PCBA and display from the enclosure as follows (Figure 12-7):

a. Slide the locking bar up from the J204 connector, and disconnect the keypad

cable. Leave the remaining cables attached.

b. Remove the nut and lock washer from each mounting screw.

c. Slide the UI PCBA and shoulder washers off the mounting screws, supporting

the attached display. Leave the shoulder washers in the mounting holes on the

PCBA. Place the UI PCBA and display with the rear enclosure, taking care to

protect the display from damage.

d. Remove the nylon spacer from each mounting screw.

e. Save all components for installation in the new enclosure.

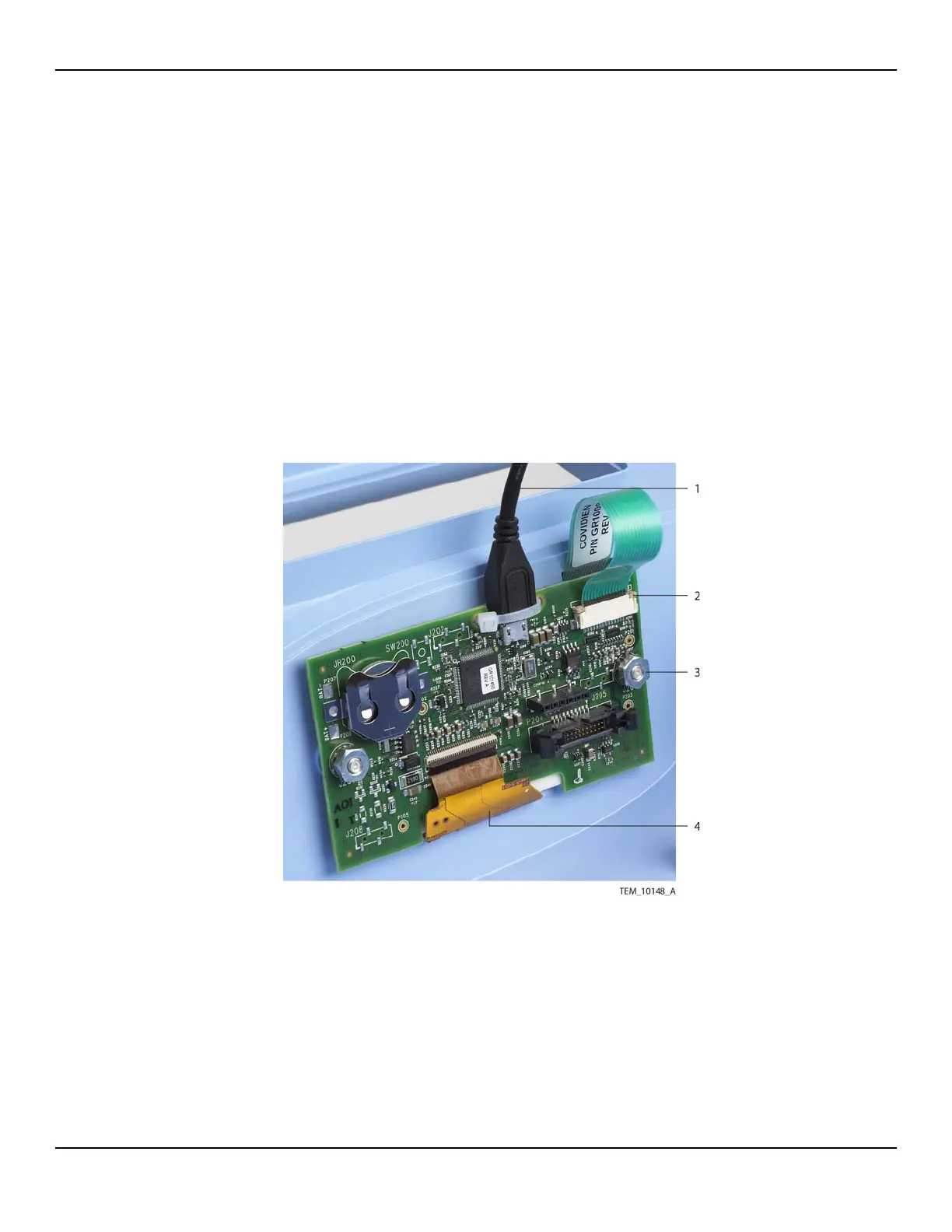

Figure12-7.UI PCBA Connections

1 USB Cable

(Leave Connected)

3 Nut, Lock Washer,

Shoulder Washer (x2)

2 Keypad Cable

(J204 Connection)

4 Display Cable

(Leave Connected)
