Rear Enclosure Replacement

Service Manual 12-15

12.5 Rear Enclosure Replacement

 Note:

This procedure requires removing the serial number label from the rear enclosure and

attaching it to the new enclosure. Be careful not to damage this label.

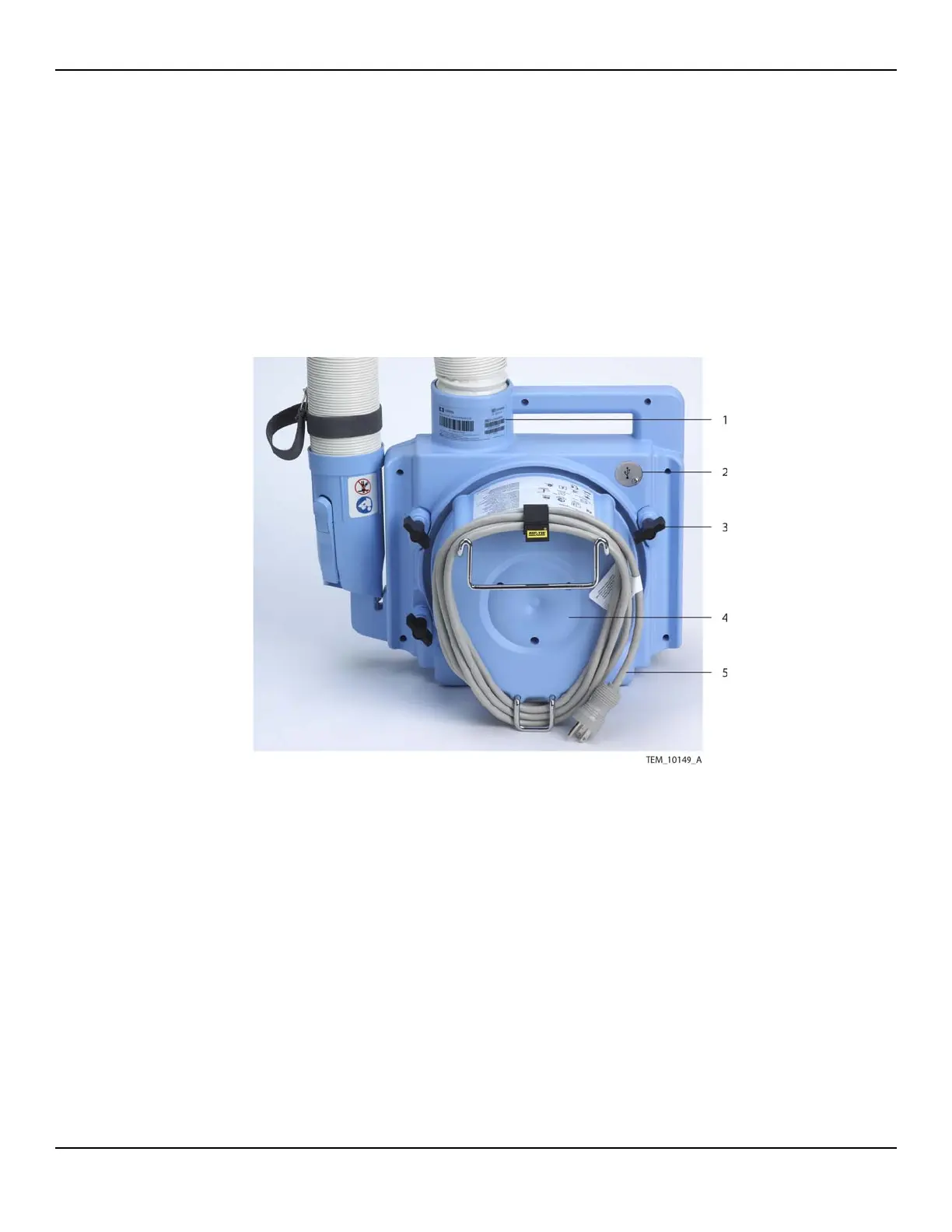

Figure12-11.Rear Enclosure (Outside) – Components to be Removed/Reinstalled

1 Serial Number Label 4 Filter Enclosure and Filter

(below Enclosure)

2 USB Port Cover 5 Power Cord

3 Pole Clamps and Mounting Bolts

(below Pole Clamps) (x3)
