Internal Component Replacement (Inside Rear Enclosure)
11-10 Service Manual
To replace the thermostat:
1. Follow the procedure Separating the Front and Rear Enclosures on page 9-2.
2. Detach the thermostat cable from the two terminals on the thermostat (Figure 11-
9).

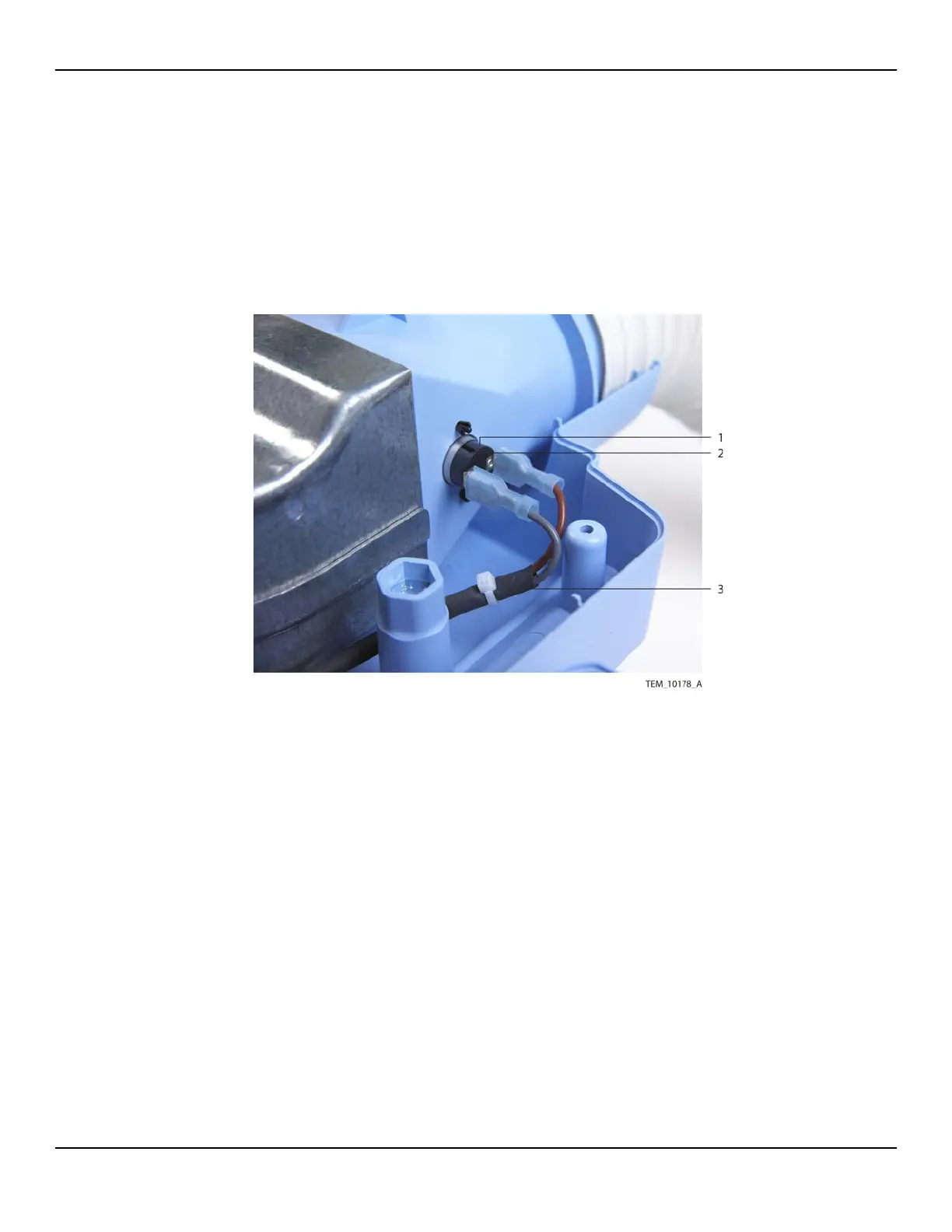

Figure11-9.Thermostat Cable Connection to Thermostat
 Caution:
Be careful when moving the hose duct adapter. The connected thermistor
wire can break if too much stress is applied to it.
3. Lift the hose duct adapter upward so you can access the inside of the duct adapt-
er.
4. Remove the thermostat from the hose duct adapter as follows (Figure 11-10):
a. Locate the two rivets securing the thermostat to the hose duct adapter.
b. From the outside of the duct adapter, use a small flat-blade screwdriver to
push the locking pin in each rivet inward until the rivet releases.
1 Thermostat 3 Thermostat Cable
2 Terminal (x2)
