Enclosure Replacement
12-30 Service Manual
27. Secure the fan assembly to the rear enclosure as follows:
a. Supporting the fan assembly with your hand, turn the enclosure over.
b. Align the fan screw holes in the enclosure with the fan assembly (Figure 12-
17 on page 12-22).
c. Install the four fan screws and tighten them to 1.1 to 1.5 N-m (9.7 to 13.3 lb-
in).
28. Install the filter and filter enclosure as follows:
a. Place the filter onto the unit.
b. Place the filter enclosure on the unit, aligning the power cord with the socket
opening and making sure that the enclosure is fully seated on the unit.
c. Reinstall the three screws in the filter enclosure (Figure 12-14 on page 12-19).
Tighten the screws to 1.2 to 1.6 N-m (10.6 to 14.2 lb-in).
29. Turn the enclosure over.
30. Attach the USB cable to the enclosure as follows:
a. Set the front enclosure next to the rear enclosure for reconnection.
b. Position the USB cable connector in the port inside the rear enclosure, with
the connector paddle toward the bottom of the enclosure (Figure 12-27).

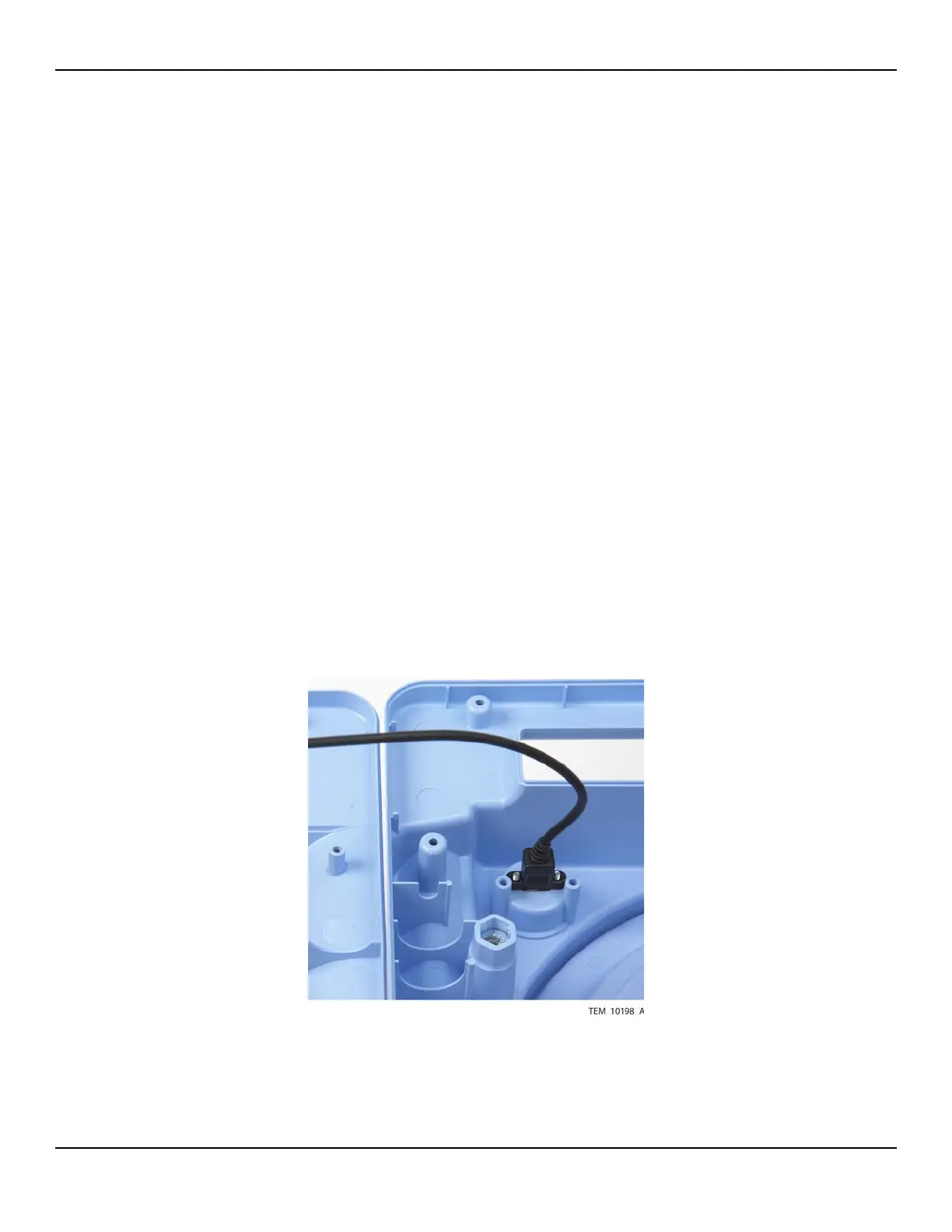

Figure12-27.USB Connector in Rear Enclosure
