No Free-Hosing Label Replacement

Service Manual 8-11

8.8 No Free-Hosing Label Replacement

The front enclosure and nozzle must display the no free-hosing label (Figure 8-

9). If either of these labels is damaged or becomes unreadable, it must be

replaced.

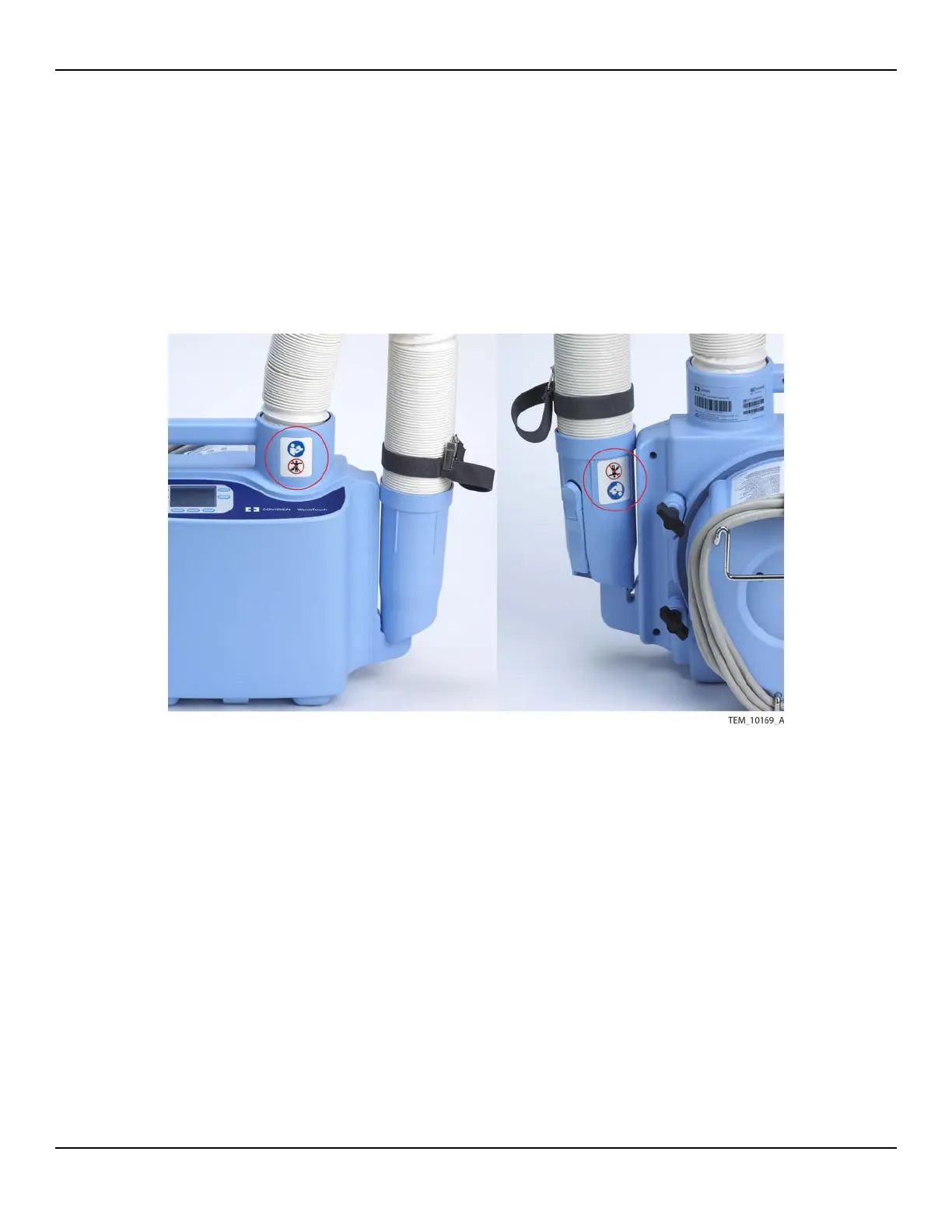

Figure8-9.No Free-Hosing Labels on Front Enclosure (L) and Nozzle (R)

Requirements:

• WT No Free-Hosing Label Kit (page A-2)

• 70% isopropyl alcohol solution and soft cloth

Note: Each kit contains six labels.

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
