Filter Replacement

Service Manual 5-9

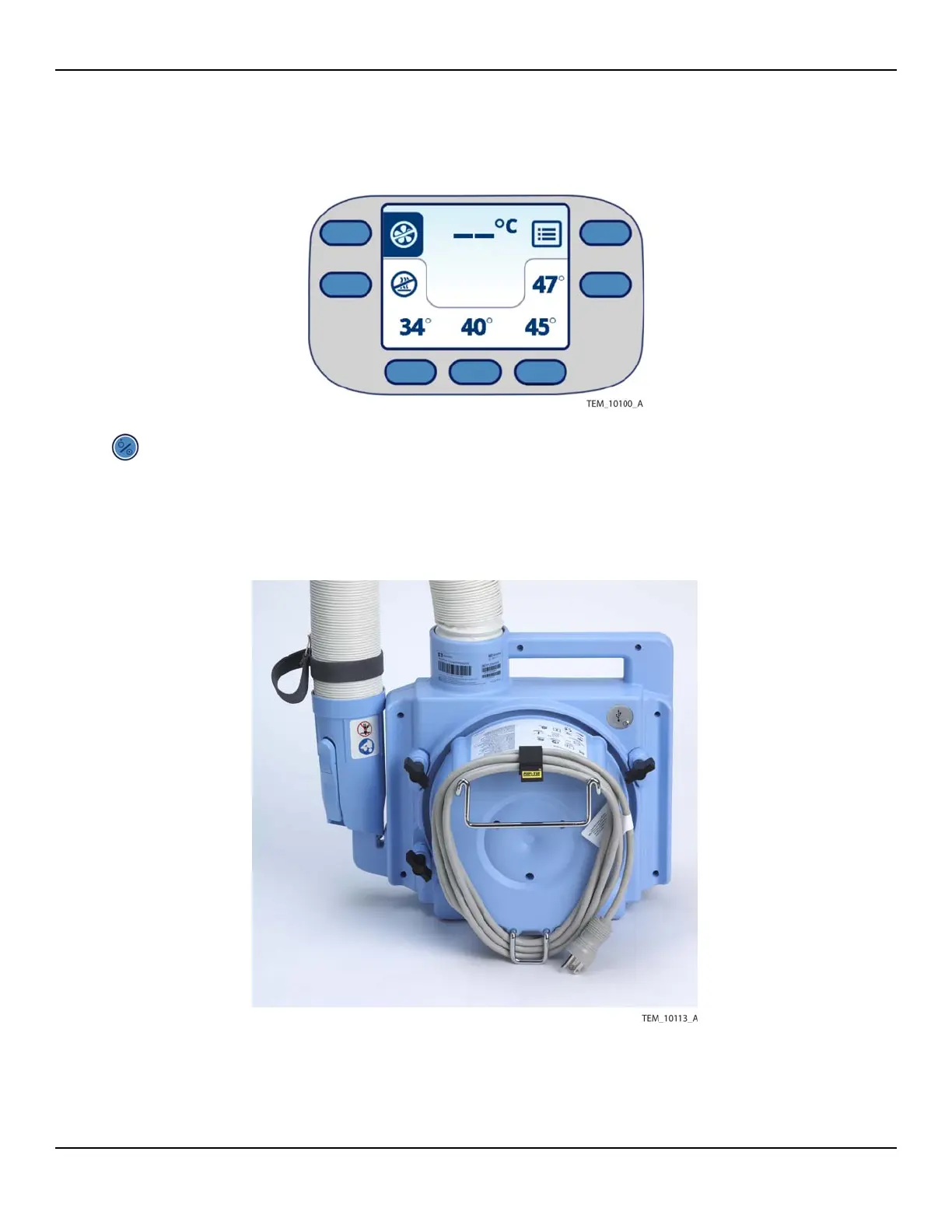

Figure5-7.Main Screen at Power-On

12. Power off the warming unit by pressing the On/Standby key. Disconnect the

power cord from the outlet.

13. Wrap the power cord around the back of the unit, and secure it with the attached

strap (Figure 5-8).

Figure5-8.Power Cord Wrapped and Secured
