Covidien WarmTouch - Figure 3-4 Back View

To Next Page

To Previous Page

Installation

3-6 Service Manual

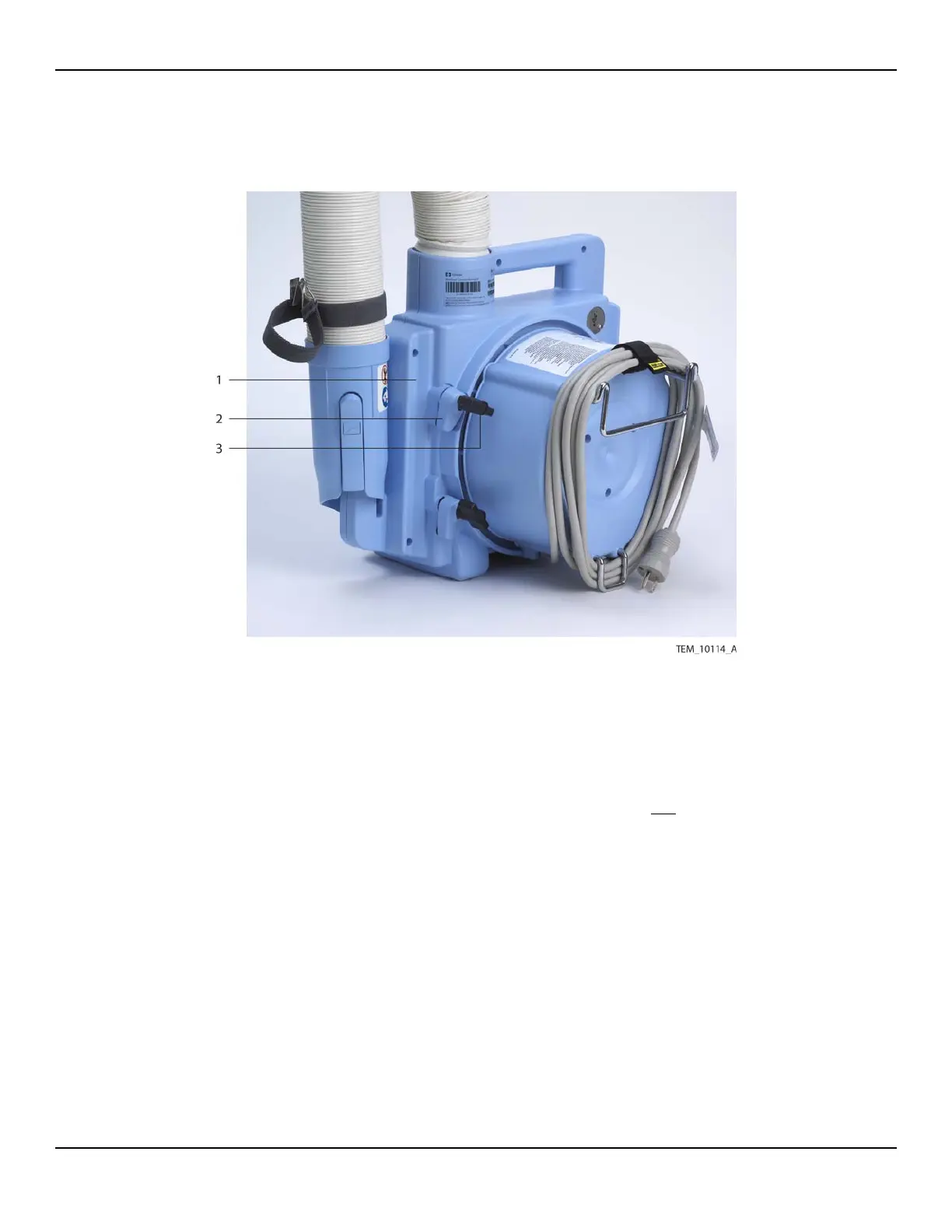

Figure3-4.Back View

5. Bracing the IV pole, position the warming unit against the pole so that the pole is

fully seated in the mounting channel. Verify that the handle is not

above the

maximum height.Reference Figure 3-5 on page 3-7.

6. Rotate the two clamp feet across the IV pole, and tighten the clamp knobs to

secure the warming unit. Do not overtighten.

1 Mounting Channel 3 Clamp Knob (x2)

2 Clamp Foot (x2)
