Covidien WarmTouch - Figure 11-6 Thermistor Position Inside Hose Duct Adapter; Figure 11-7 Inserting the Hose Duct Adapter

To Next Page

To Previous Page

Thermistor Sensor Assembly Replacement

Service Manual 11-7

c. Lift the hose duct adapter away from the fan duct just enough to see inside

the adapter.

d. Make sure that the tip of the thermistor is no more than 0.3 cm (1/8 inch) from

the center hub of the duct adapter (Figure 11-6).

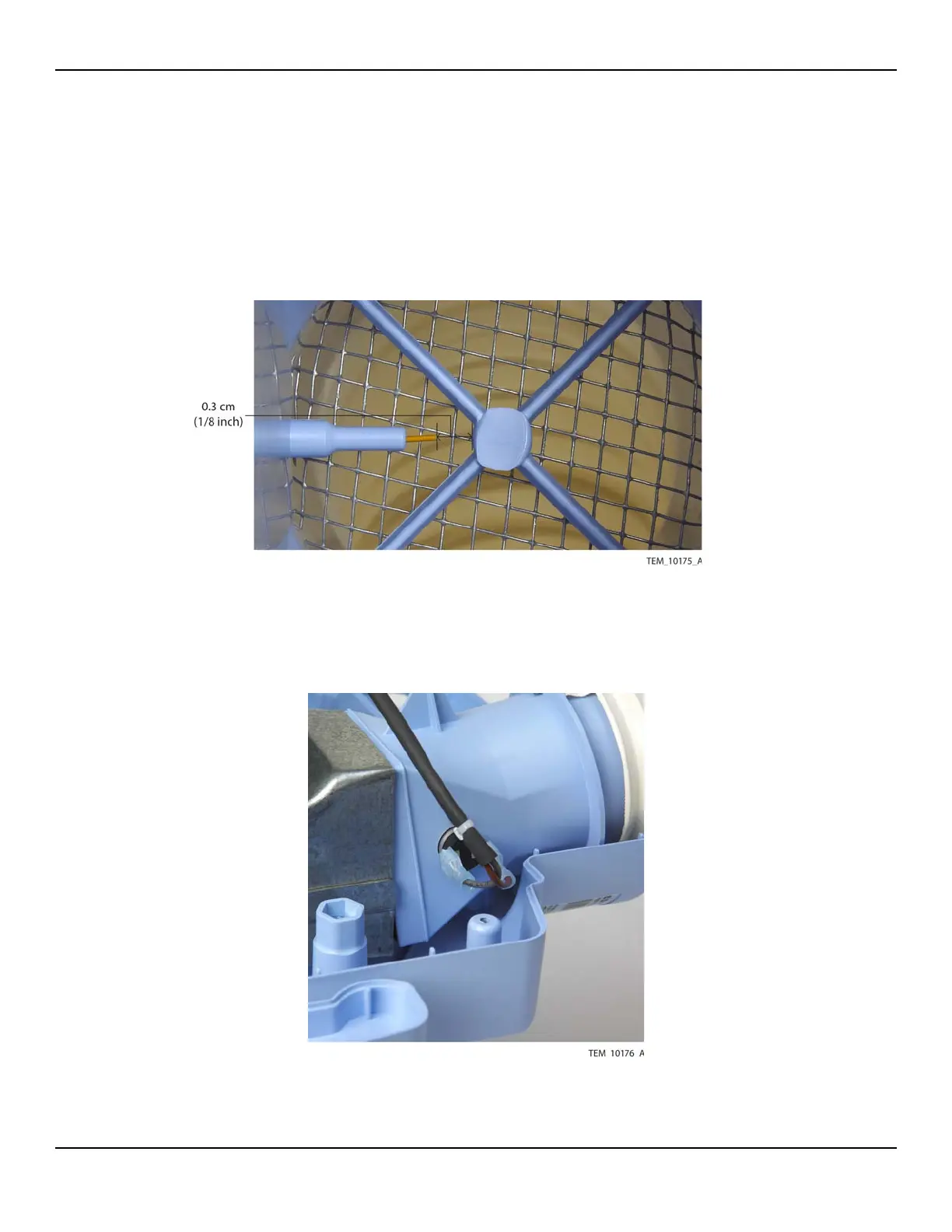

Figure11-6.Thermistor Position Inside Hose Duct Adapter

9. Place the duct adapter back into the fan duct by inserting the top edge of the

adapter first, then rotating the adapter downward until it drops into place

(Figure 11-7).

Figure11-7.Inserting the Hose Duct Adapter
