Covidien WarmTouch - Figure A-5 Internal Components (Inside Front Enclosure

To Next Page

To Previous Page

Parts Locator

Service Manual A-11

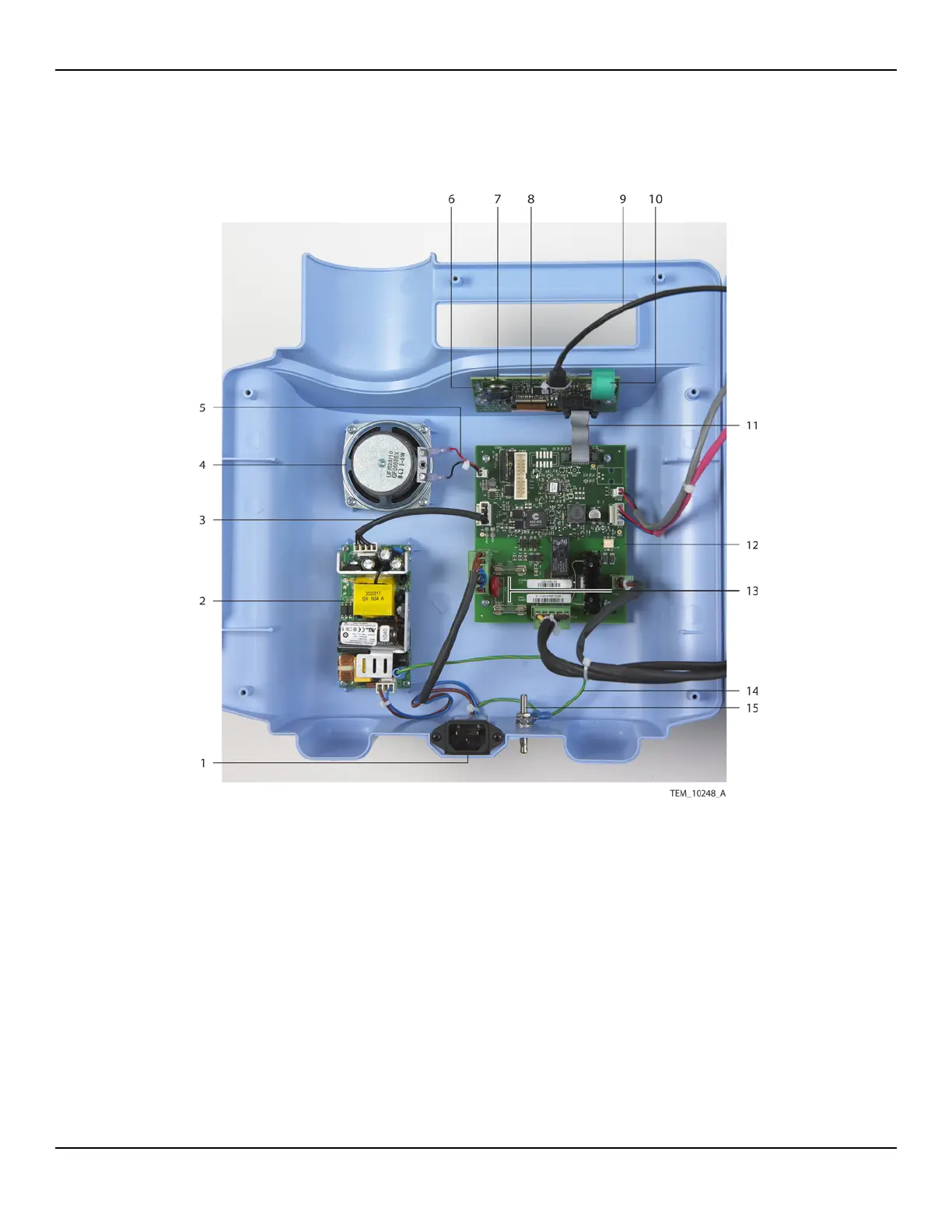

FigureA-5.Internal Components (Inside Front Enclosure)

1 AC Power Inlet 9 USB Cable

2 Power Supply 10 Keypad Cable

(to Keypad on Front Enclosure)

3 Power Supply Output Cable 11 Ribbon Cable

4 Speaker 12 Power PCBA

5 Speaker Cable 13 Fuses

6 User Interface (UI) PCBA 14 Ground Cable

7 Clock Battery 15 Equipotential Stud

8 Display Cable

(to Display under UI PCBA)
