External Component Replacement

8-10 Service Manual

8.7 Nozzle Strap with Clip Replacement

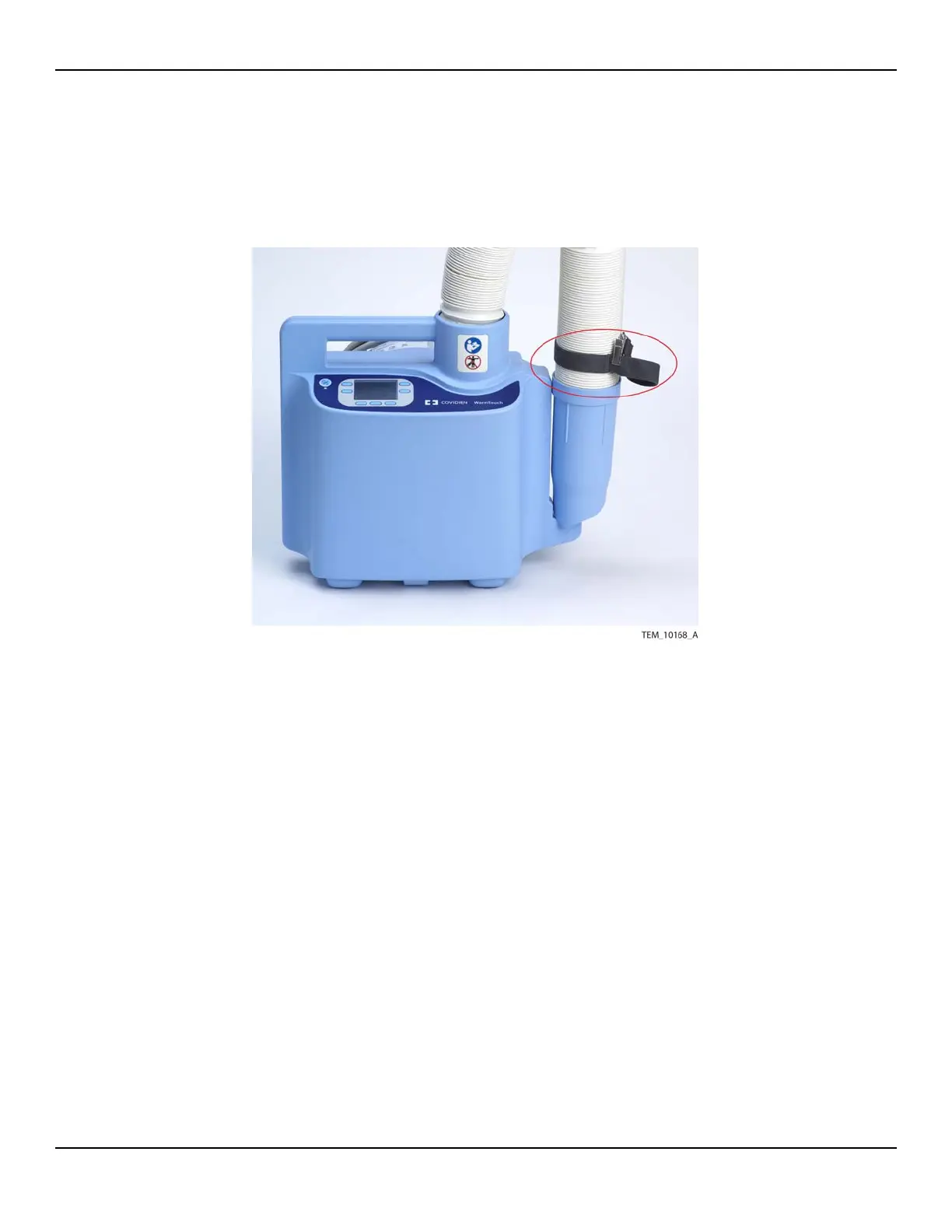

Figure8-8.Nozzle Strap with Clip

Requirements:

• WT Nozzle Strap/Clip Kit (page A-2)

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.

To replace the nozzle strap with clip:

1. Lift the nozzle off the hook on the side of the warming unit.

2. If the current nozzle strap is still present, slide it down the hose and over the

nozzle, stretching the strap as necessary to remove it.

3. Slide the replacement nozzle strap over the nozzle and onto the hose, positioning

it as desired.
