Covidien WarmTouch - Figure 11-36 Position of Fan Assembly

To Next Page

To Previous Page

Fan Assembly Replacement

Service Manual 11-39

11. Position the new fan assembly in the unit as shown in Figure 11-36.

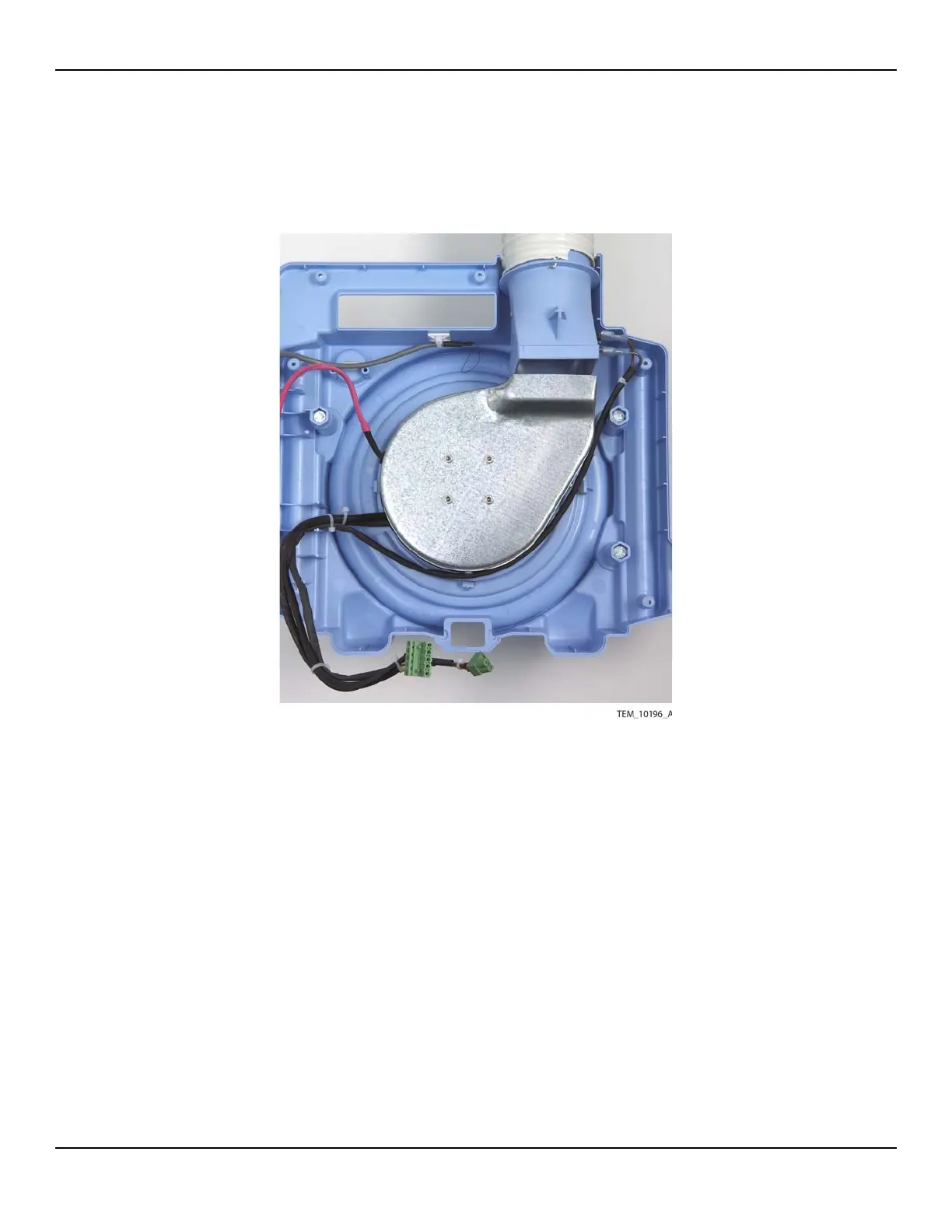

Figure11-36.Position of Fan Assembly
