Hose Replacement

Service Manual 11-21

11.7 Hose Replacement

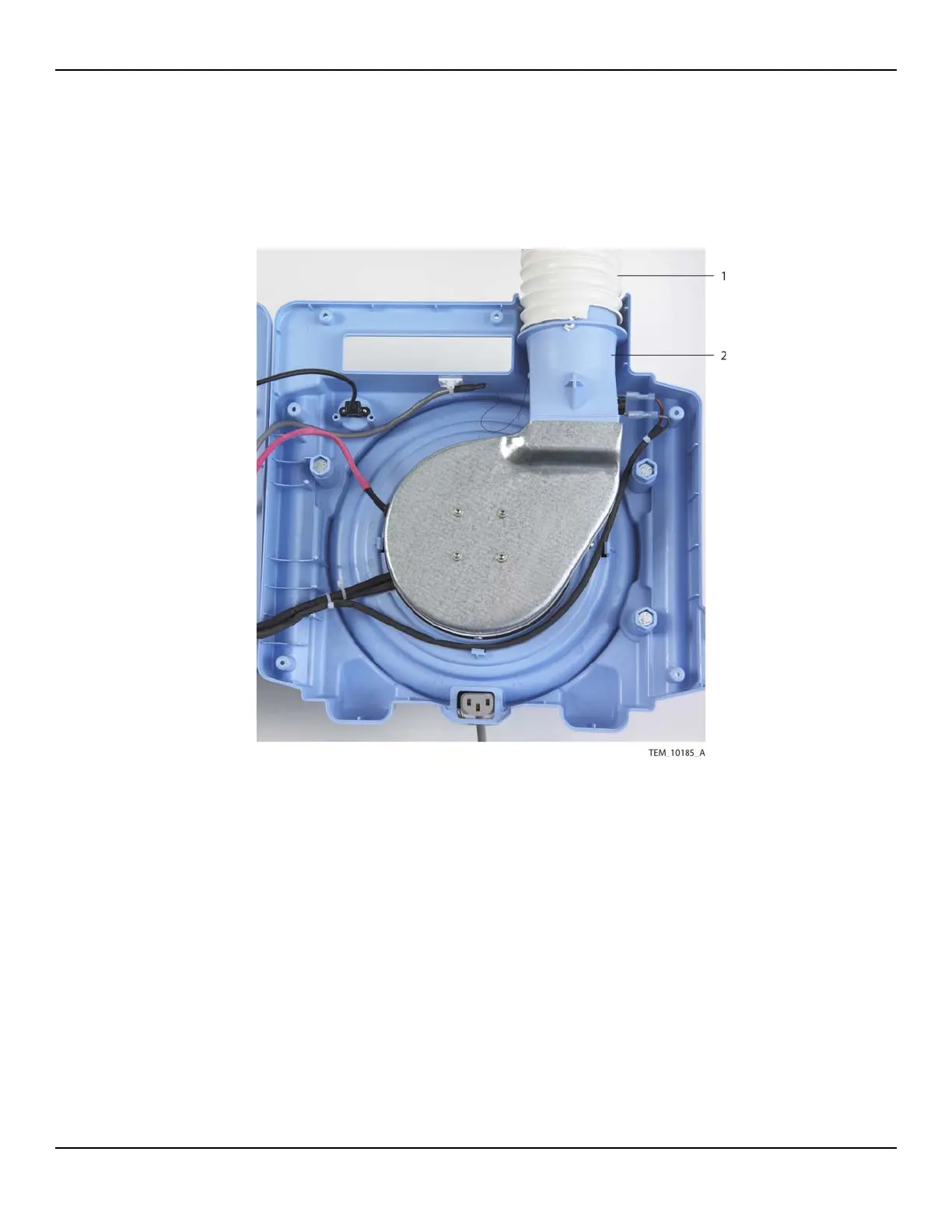

Figure11-19.Hose

Requirements:

• WT-CWU Hose Kit (page A-5)

• Torque driver with #2 Phillips bit

• Medium flat-blade screwdriver with long handle

• Pliers

• Small knife or scissors

1 Hose 2 Hose Duct Adapter
