Power PCBA Replacement

Service Manual 10-33

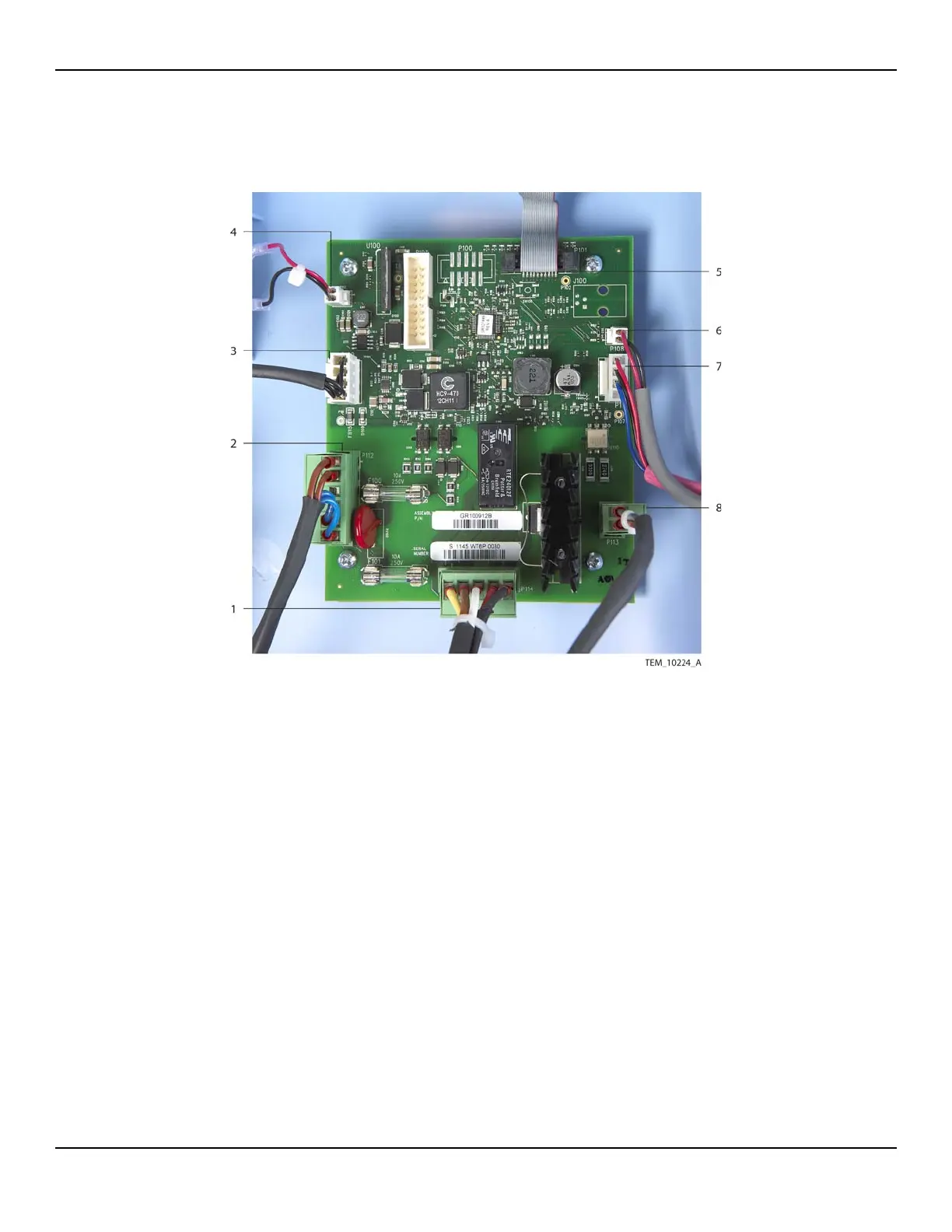

Figure10-25.Power PCBA Connections

3. Remove the four screws securing the Power PCBA to the enclosure.

 Caution:

The institution should follow local governing ordinances and recycling

instructions regarding disposal or recycling of filter and device

components or end of life of the product.

1 Heater Cable

(P114 Connection)

5 Ribbon Cable

(P101 Connection)

2 AC Power Inlet Wire Assembly

(P112 Connection)

6 Thermistor Cable

(P108 Connection)

3 Power Supply Output Cable

(P109 Connection)

7 Fan Cable

(P111 Connection)

4 Speaker Cable

(P103 Connection)

8 Thermostat Cable

(P113 Connection)
