Covidien WarmTouch - 8.6 Nozzle Replacement

To Next Page

To Previous Page

External Component Replacement

8-8 Service Manual

8.6 Nozzle Replacement

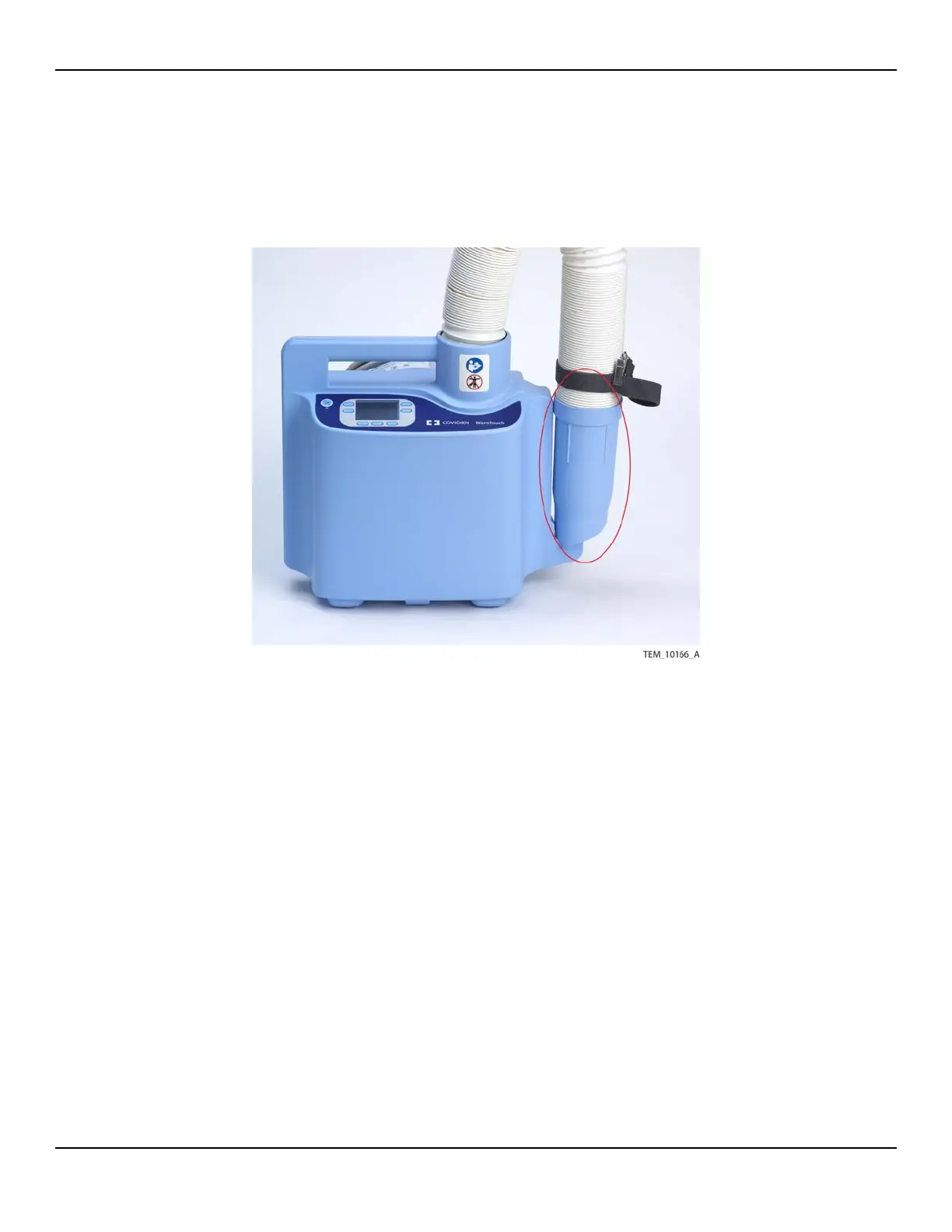

Figure8-6.Nozzle

Requirements:

• WT-CWU Nozzle Kit (page A-2)

• Medium flat-blade screwdriver with long handle

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
